waterproof curved shape sports hall marquee tent for outdoors sport club

Availability:
Quantity:
  • CPT18

  • LP OUTDOORS

  • 6306220090

  • 18M

waterproof curved shape sports hall marquee tent for outdoors sport club

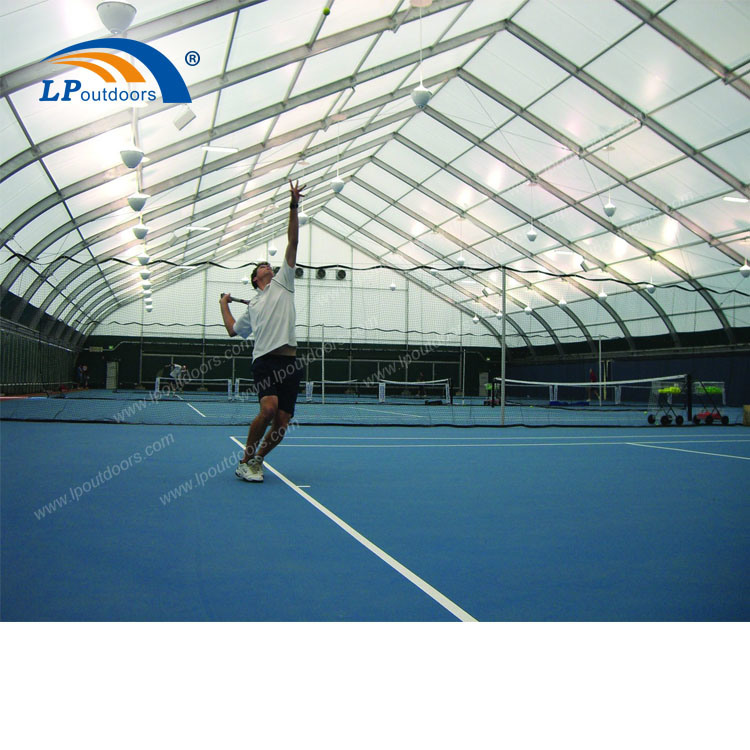

Tennis is a sport that is popular in the world and is called the second ball in the world, Grand Slam Tennis is a important tennis events all over the world every year. With the increasing popularity of tennis, people’s enthusiasm for tennis is increasing. However, some countries have fewer indoor courts, if establish a fixed tennis court, will need a lot of land, time, labor force, material resources and financial resources. The quickly built tennis court tents can solve these problems well and meet people’s needs.

With curved shape, the inner space is high enough for tennis games. And the length size could be modified according to how many courts you need to cover. And the curved tent, the frame is use profile aluminum alloy, flexible, robust, environmentally friendly and safe, the curved shape could help the tent snow resistant, the roof cover is by high quality 850G/sqm pvc, it’s block out and waterproof, avoid to exposure sunshine and rain. The sidewalls could be close and open depend on your idea. Also the curved tent is detachable tent, where need the temporary indoors tennis court and that could move where.


waterproof curved shape sports hall marquee tent for outdoors sport club

waterproof curved shape sports hall marquee tent for outdoors sport club


Marquee tent Size details




Structure of marquee:

Aluminum profile

high pressed extrued aluminum alloy 6061-T6,166x88x3mm for 15m, 17m, 18m width.


203X110X4mm for 19m,20m,21m,22m,23m,24m,25m.All are anodized

Steel parts

hot-dipped galvanized , Passed 144 hour of salt spraying test

Raw material of marquee

Top roof fabric

850g/sqm(24 Ounce) laminate Vinyl, waterproof , fire retardant M2


UV protection, and Rotproof. Blackout

Side panels

(1) 650g/sqm(19 Ounce) laminate Vinyl, waterproof , fire retardant M2


     UV protection, and Rotproof. Translucence.


(2) 5cm thickness of sandwitch solid wall, ABS Solidwall,Glass wall


     flame retardant,Heat resistant and Rotproof.


What advantage:


Item

Our manufactory

Some manufactories

Side height

3m

lower 2.7m or 2.5m

Aluminum profile

Bigger 166x88x3mm

Smaller 122x68x2.5mm profile

Fabric

850g/sqm, special treated

750g/sqm or 650g/sqm, no special treated

Steel joints

Good welding, Spray salt resistant 144hour

Bad welding, Spray salt resistant about 80 hour

Assembly accuracy

Bolt and holes can fit exactly and fixed

Bolt is difficult to get through hole and fixed.

TransparencyPVC

UV Aging test, -20º C resistant

No UV Aging test, can' t be 20º Cresistant, breaken

Sidewallaccessories

Nylon rope+Nickel Eyelet

Zippper, easy breaken. or cotton  rope, easy rot

Rachet

Bigger rachet+nylon 50mm ribbon

Small rachet+polyester ribbon, easy breaken

Cover lappetstructure

Aluminum rails+screw bolt

Elastic rope, easy breaken and water can' t flow.

Roof wire

201# steel wire, stainlesss

Generally steel wire, easy stain

Support beam

  " X" brace beam, galvanized steel

port beam, thin aluminum

Gable triangle wall

The middle is aluminum slots

The middle is velcro or rope.

Wind loading

Wind loading 80km/h test report

No Wind loading test report



LP outdoors could support all kinds of tent and professional suggestion to customers,

if you want to learn more specifcations and all  detail structure ,

please kindly link to : https://www.lpoutdoors.com/specification.html
