Waterproof aluminum frame large party tent for outdoors car show event

Availability:
Quantity:
  • LPT3050
  • LP OUTDOORS
  • 6306220090
  • 30M

Waterproof aluminum frame large party tent for outdoors car show event

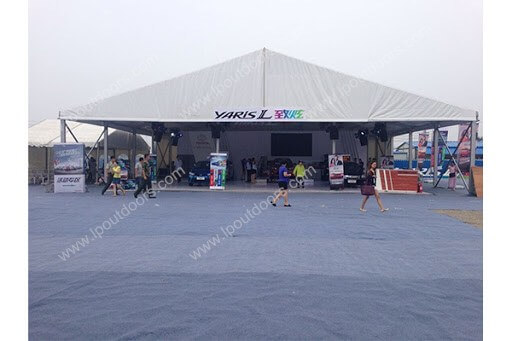

The car trade show tent has many advantages. Because it is easy to transport and easy to set up and quick to disassemble, it is more suitable for the national tour with new cars.


And there is no extra pillar inside the tent, the space utilization rate is 100%, and the flexible interior space is more suitable for outdoor auto show. The tent has the advantage of being windproof, waterproof and UV resistant, which can better protect the new car from damage.


LPoutdoors is a professional tent manufacturer who offers one-stop services for our clients. Such as the floor/chairs/tables/so on. If you need some help with your project, please feel free to contact us. There is our 24-hours online.


Structure
Aluminum profile    high pressed extrued   aluminum alloy 6061-T6, 122X68X3mm for 10,11,12m width

166x88x3mm for 13m, 14m. 15m, 17m, 18m width. All are anodized
Steel parts hot-dipped   galvanized , Passed 144 hour of salt spraying test
Raw material
Top roof fabric  830g/sqm(25 Ounce) laminate   Vinyl, waterproof , fire retardant M2

UV protection, and   Rotproof. Blackout
Side panels (1)   650g/sqm Double PVC, waterproof , fire retardant M2

     UV protection, and Rotproof. Translucence.

(2)   5mm ABS solidewall, waterproof, UV protection ,flame retardant


Option Accessories
Optional Acessories Grass anchors lining,   light, wood flooring, slide glass door and so on.
Loading Specification
Wind   loading:        100km/hour
Snow loading:      0.5kn/square meter



Item Our manufactory    Some manufactories
Side height 4m lower 3.7m or3.5m
Aluminum profile Bigger 203x110x4mm Smaller 166x88x3mm profile
Fabric 850g/sqm, special treated 750g/sqm or 650g/sqm, no special treated
Steel joints Good welding, Spray salt resistant 144hour Bad welding, Spray salt resistant about 80 hour
Assembly accuracy Bolt and holes can fit exactly and fixed Bolt is difficult to get through hole and fixed.
TransparencyPVC            UV Aging test, -20º C  resistant No UV Aging test, can' t be -20º C resistant, breaken
Sidewallaccessories Nylon rope+Nickel Eyelet Zippper, easy breaken. or cotton  rope, easy rot
Rachet Bigger rachet+nylon 50mm ribbon Small rachet+polyester ribbon, easy breaken
Cover lappetstructure Aluminum rails+screw bolt Elastic rope, easy breaken and water can' t flow.
Roof wire 201# steel wire, stainlesss Generally steel wire, easy stain
Support beam   " X" brace beam, galvanized steel port beam, thin aluminum
Gable triangle wall The middle is aluminum slots The middle is velcro or rope.
Wind loading Wind loading 80km/h test report No Wind loading test report

Waterproof aluminum frame large party tent for outdoors car show event (1)





Want to learn more specifcations and all  detail structure ,please kindly link to :

https://www.lpoutdoors.com/Specification-Of-30-50m-Big-Party-Tent-id6397176.html
