Modern Safe HDPE Retractable Cover Pergola for Children's Play Areas

Name: Modern Safe HDPE Retractable Cover Pergola for Children's Play Areas
Brand: LP OUTDOORS
Rating: 5.0 (45 reviews)

Modern Safe HDPE Retractable Cover Pergola for Children's Play Areas
Each sail utilizes 5-6mm 304 stainless steel guides
Fabric: HDPE sunshade net fabric, 99% UV blocking and up to 95% shading rate
Have many colors and multiple weights ranging from 100 g to 340 g to meet your requirements.
Origin: Dongguan, Guangdong, China
Brand: LP Outdoors

Availability:

Quantity:



Inquire Add to Basket

Model:
HDPE Retractable Pergola
Brand:
LP OUTDOORS
Width:
customized

Modern Safe HDPE Retractable Cover Pergola for Children's Play Areas

The HDPE retractable pergola offers a high quality shading solution for play and recreation areas. It creates a large and comfortable shading area for efficient and safe outdoor games and activities.

Its basic structure consists of stainless-steel 304 and aluminium alloy parts. Durable HDPE fabric is securely tensioned within the aluminum rail, effectively ensuring its reliability and wind-resistance capacity. Users shall have a choice between a manual control or an efficient engine control, which shall be easily changed.

The system may be installed flexibly to take account of existing walls or new steel frames. A good ultraviolet barrier and duration provide permanent value and protection in all fields.

HDPE retractable pergola is characterized by high-quality HDPE fabrics and durable motors offering flexible and reliable solutions for shading applications.

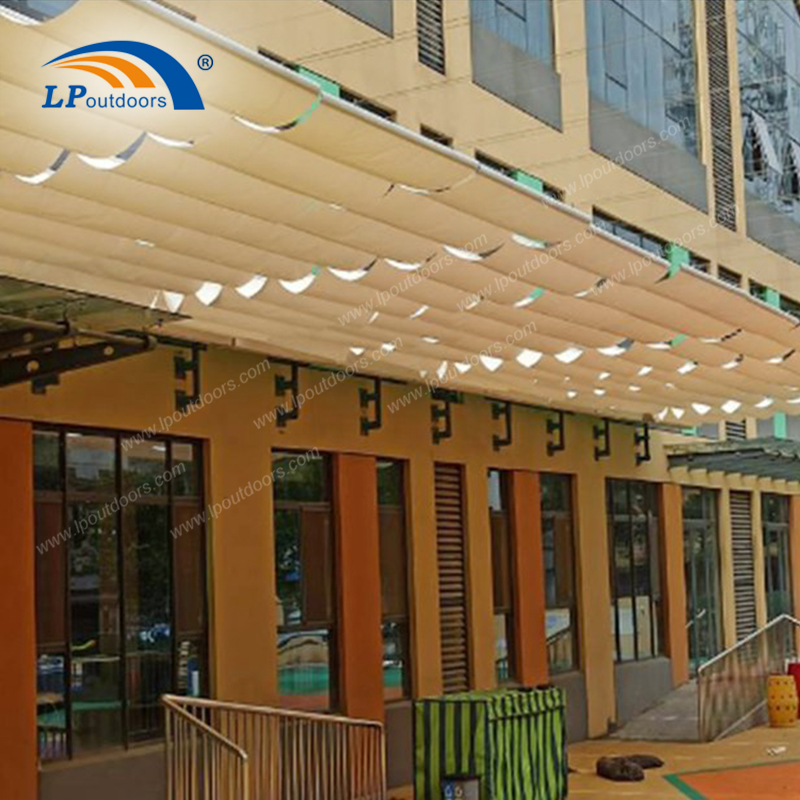

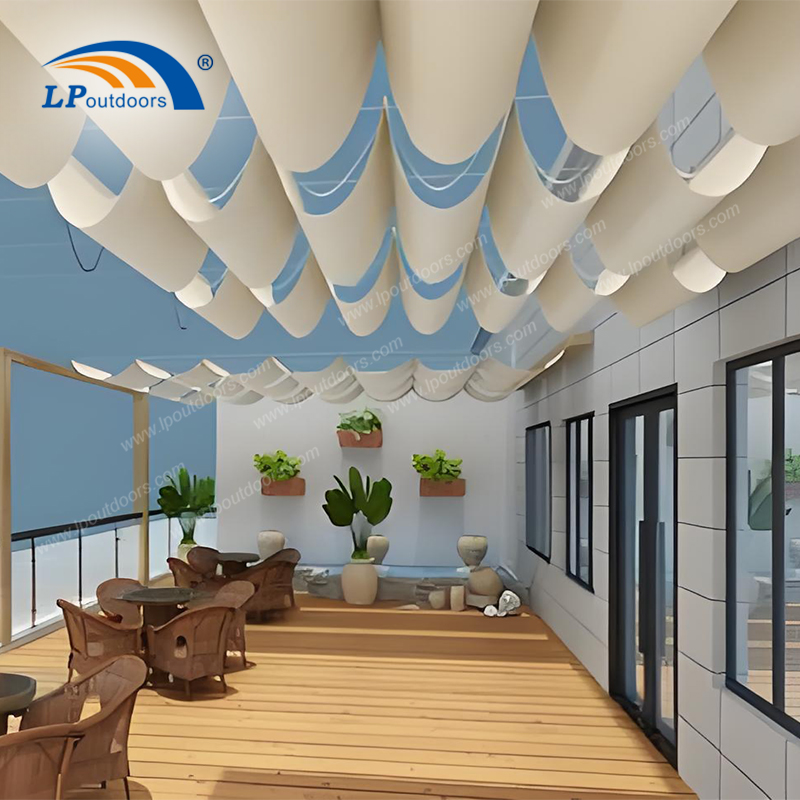

White HDPE Retractable Pergola

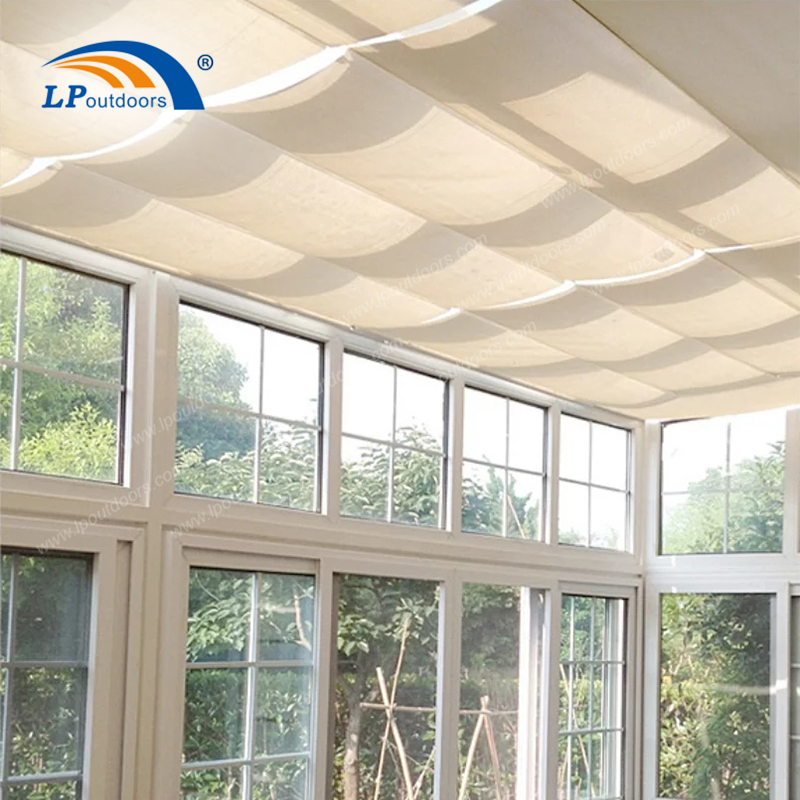

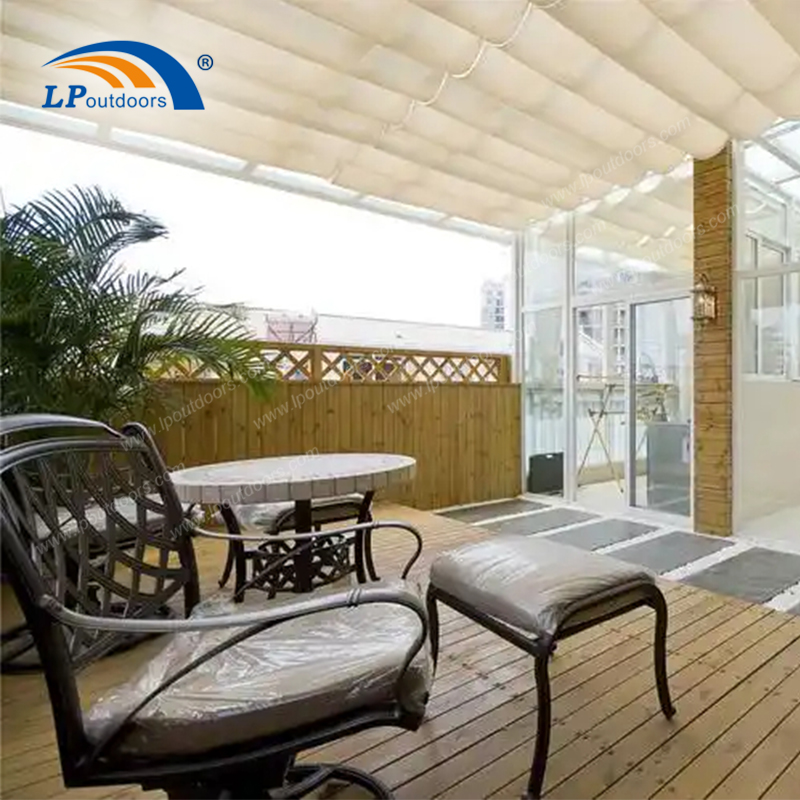

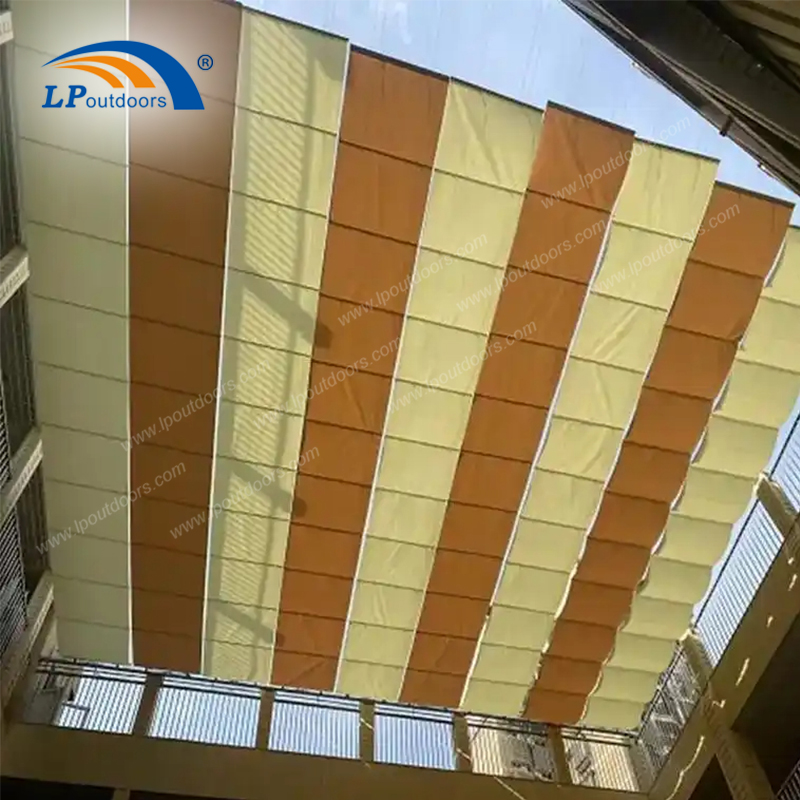

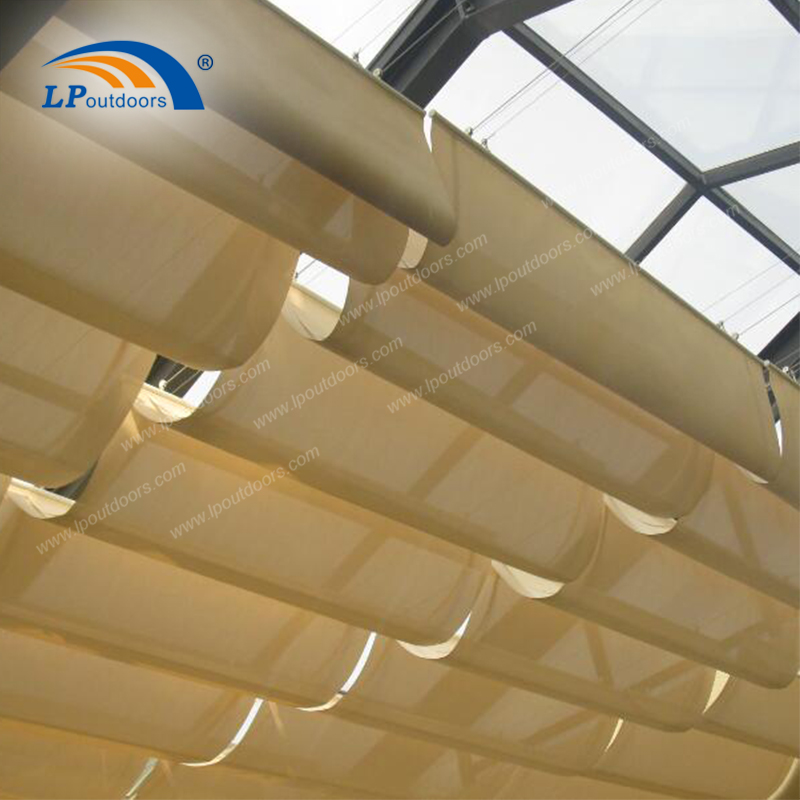

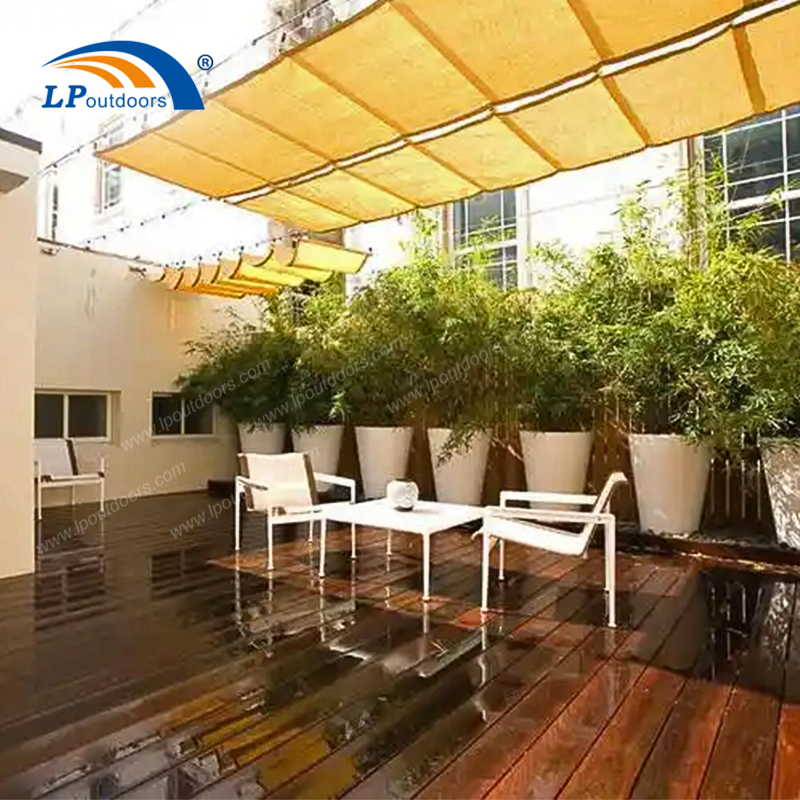

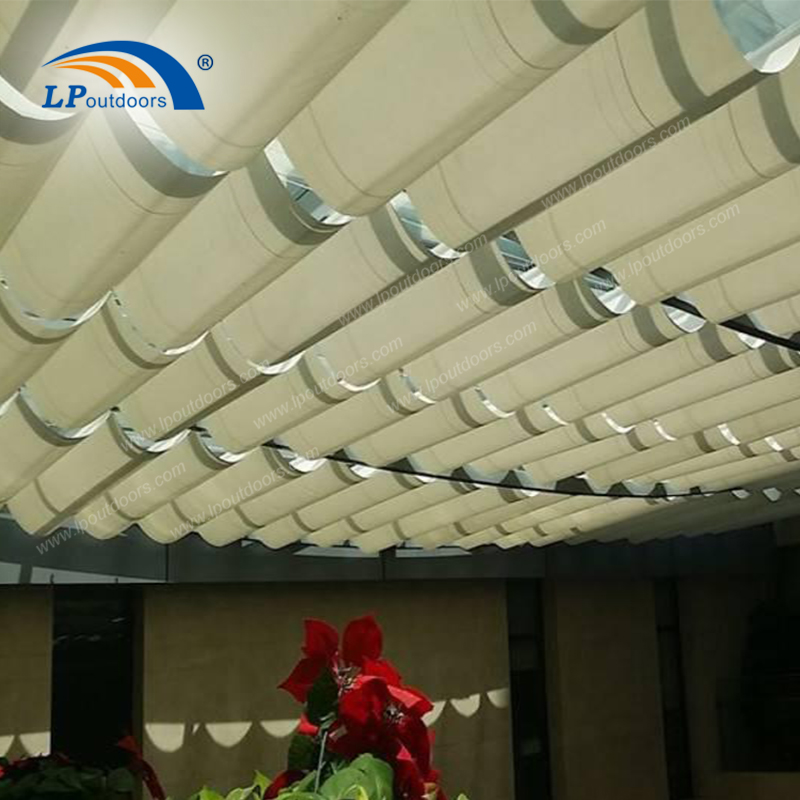

HDPE retractable pergola use

Specification of Retractable HDPE Pergola

LP HDPE retractable pergola is a high-performance shading system designed for playground, park, commercial space and so on. It has selective electrical motor systems and self-defined dimensions and colors. The high quality materials ensure durability, safety and ease of use in different environments.

Fabric and Main Components Specification

Component	Description
Fabric Material	High-Density Polyethylene (HDPE) shade netting; raw materials and pigments imported from Europe
Available Weights	200g/m² (6-year lifespan), 340g/m² (10-year lifespan)
UV Protection	Blocks up to 99% of UV rays; shading rate up to 95%
Color Options	200g: 4 standard colors; 340g: 20 designer colors
Fabric Construction	Sewn edges with integrated plastic strips inserted into aluminum guide tubes and tension bars
Guide System	5–6mm 304 stainless steel guide rails; 8mm high-tensile bolts

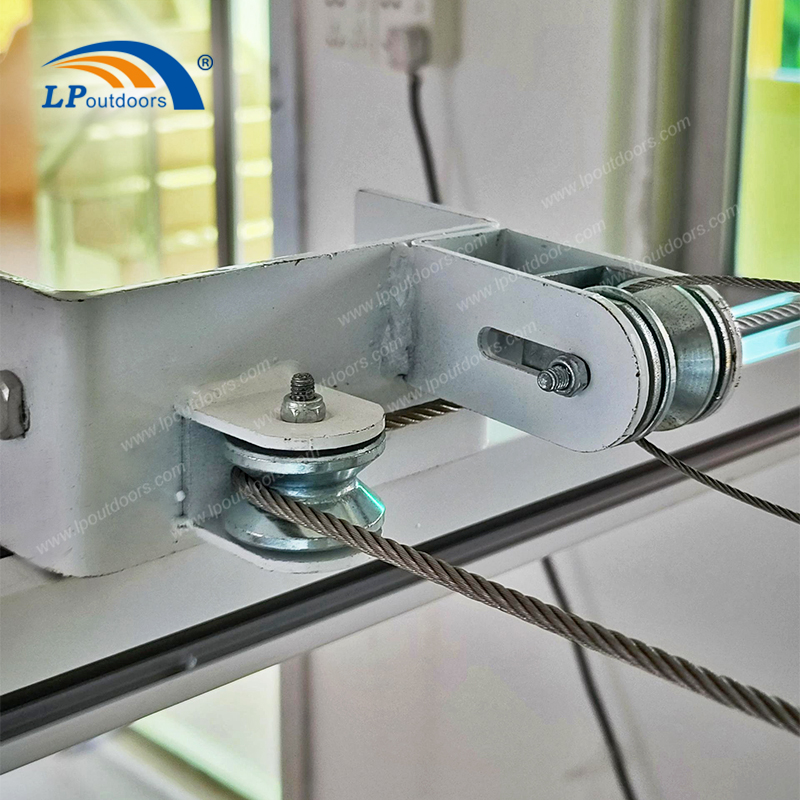

Suspension System	304 stainless steel carriers with 12mm inner bore; 5mm stainless steel hanging wire ropes and pulleys
Additional Features	High-temperature setting during production ensures color fastness (only 20% fading over 10 years)

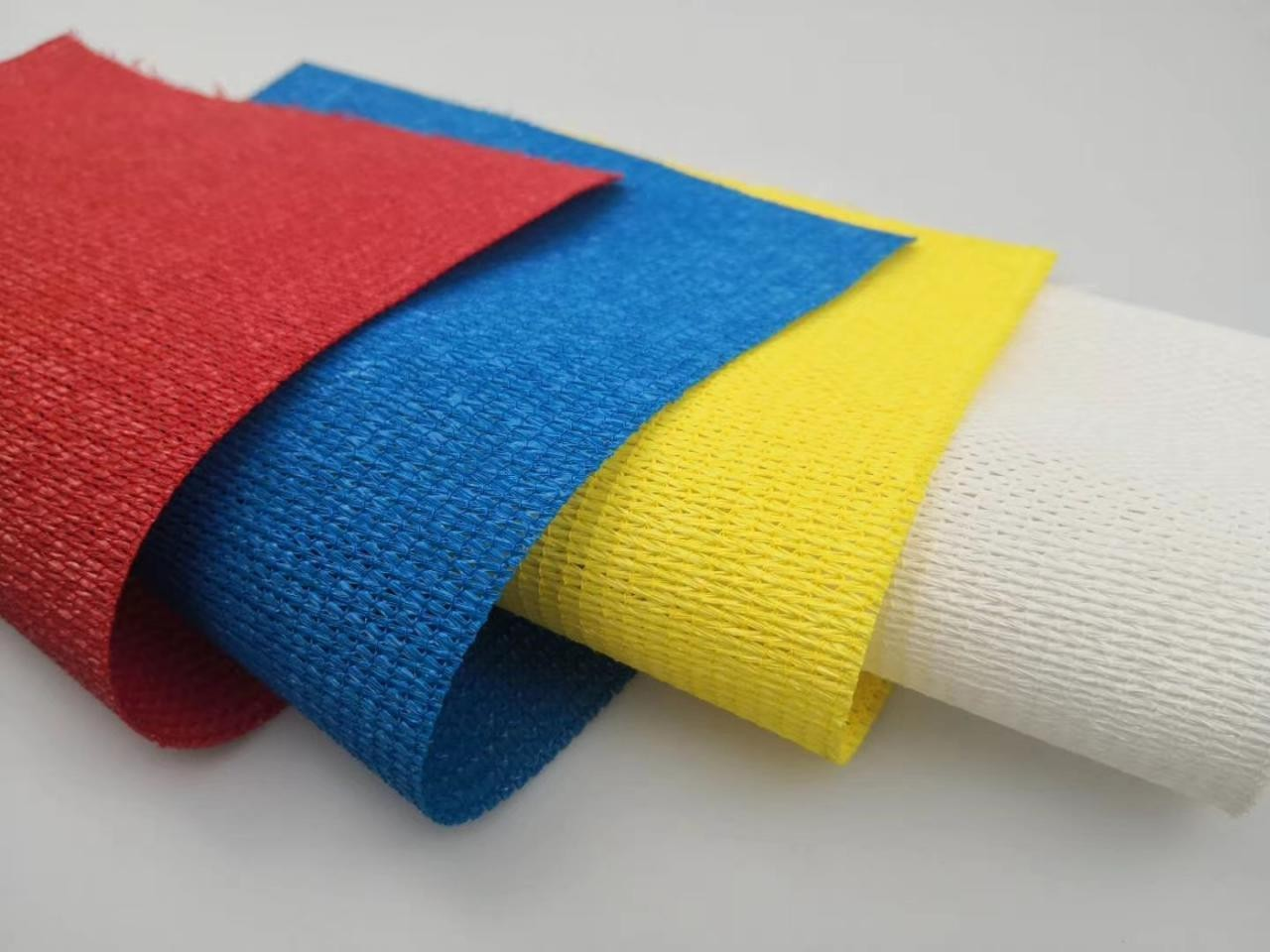

HDPE retractable pergola fabric

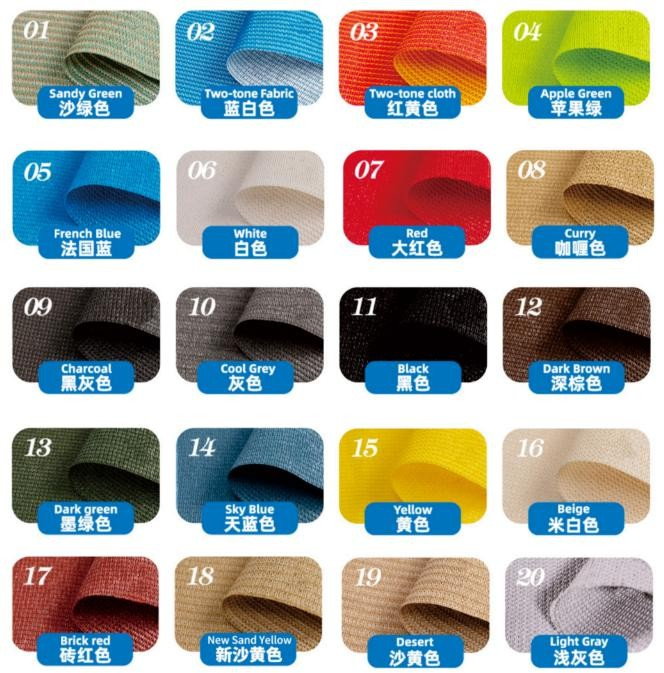

Fabric color options

Drive System and Structural Options

Category	Details
Drive Types	Manual / Electric (AC or DC motor)
AC Motor	20N·m torque, 26 RPM, 220V, IP44, max 4 minutes continuous operation; suitable for spans up to 30m
DC Motor	30N·m torque, 26 RPM, 24V, IP44, continuous duty; suitable for spans exceeding 30m (single-open up to 50m)
Mounting Options	Can be attached to existing concrete walls or supported by a custom steel structure
Steel Structure	Columns: 100×100×3mm square tube; Crossbeams: 100×100×3mm square tube; sandblasted and powder-coated
Foundation	Reinforced concrete foundation (1m³ for spans ≤25m; 1.2m×1.2m×1.5m for spans >25m) with anchor bolts
Control Accessories	Optional wind and rain sensor for automatic retraction during strong wind (level 6+) or rainfall
Warranty	2-year full warranty on motor and system; fabric lifespan exceeds 10 years

motor drive

drive details

flexible shading pergola bright colors fabric aesthetic design pergola custom sizing pergola HDPE retractable pergola
