Free Standing Automatic Aluminum Structure Pergola Shutter Roof Patio

Material:
Package:
Color:
Function:
Installation Style:
Availability:
Quantity:
  • LRP9
  • LP Outdoors
  • 7610900000
  • custom

Free Standing Automatic Aluminum Structure Pergola Shutter Roof Patio


Product introduction



The Free Standing Shutter Roof Patio is sleek and minimalistic which gives it’s design and artistic look and feel and can be operated with just the push of a button. The flat, aligned louvres can rotate 150 degrees. This allows you to adjust to your liking and help protect your from the blazing sun. You can have as much or as little shade as you desire. Or open it fully to have none at all.



As with any luxury item, you’ll expect high quality and standards in construction. With the Automatic Aluminum Structure Louvre Pergola, you won’t be disappointed. With a heavy aluminum profile, that won’t rust, your structure will be durable and sturdy. Placing it over any flat surface, such as a patio or outdoor deck, or even as a stand alone structure, will give you plenty of protection to relax.


Product Information

Product Name Aluminum louver roof of pergola
Material Aluminum frame
Specification Size: customized
Main Tube: 85x140x1.mm/143.5x28.5x35x1.5mm/120x120x1.5mm
Application Patio, Garden, Street and so on
Color/ Size custom
Rainfall Intensity 0.04 to 0.05l/s/m²
Snow Load Up to 120 kg/m²
Wind Resistance Up to 120 km/h for Closed Louver
Installation The installation instruction or video will be provided
Accessories Side Curtains/ LED Light/ Wind and Rain sensor/heater/ fan, etc.


Product Detail

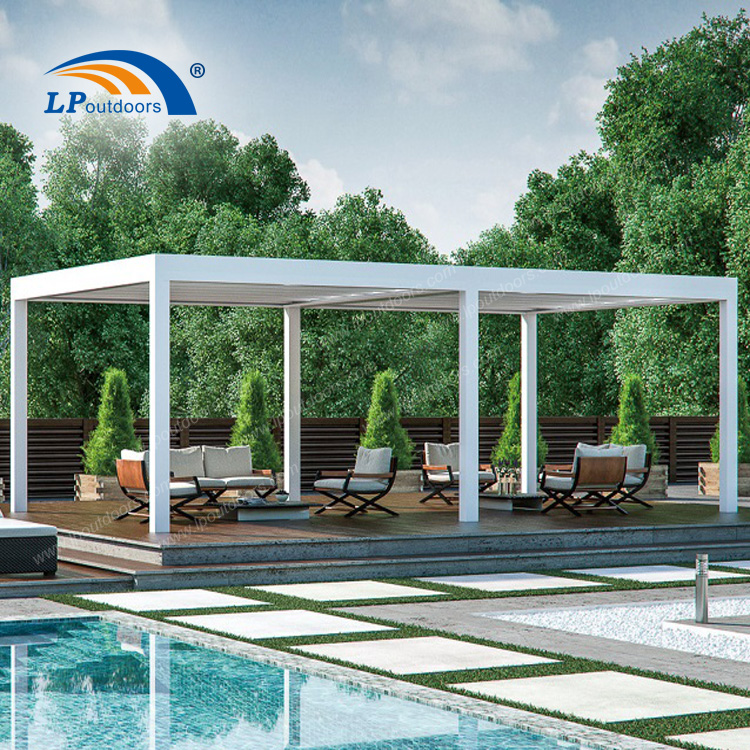

white louver pergola 2

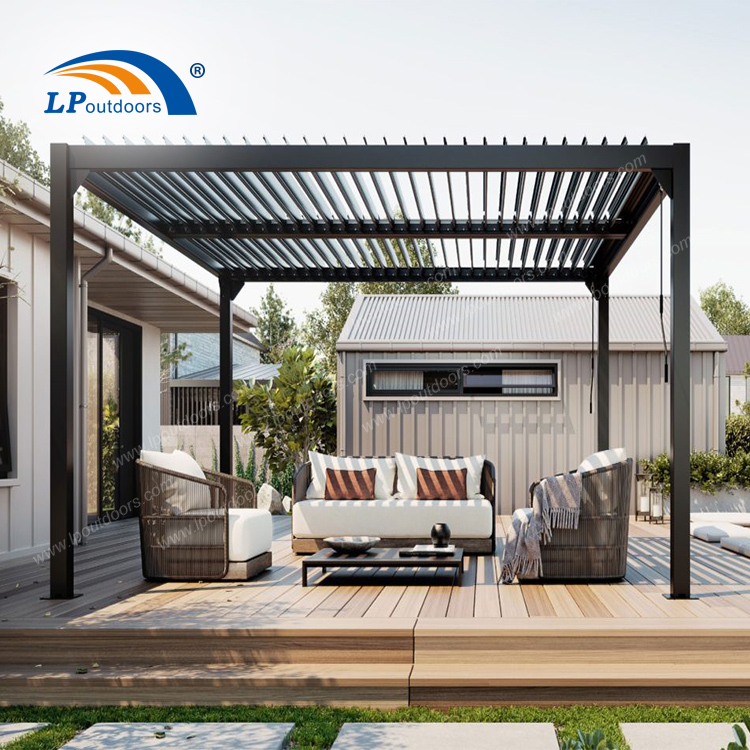

louver roof system

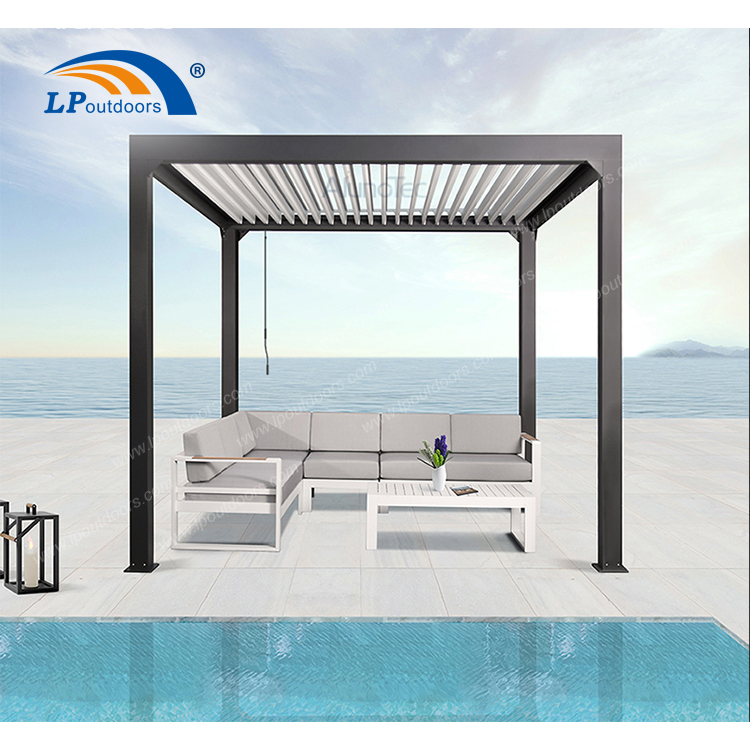

light louvered roof pergola

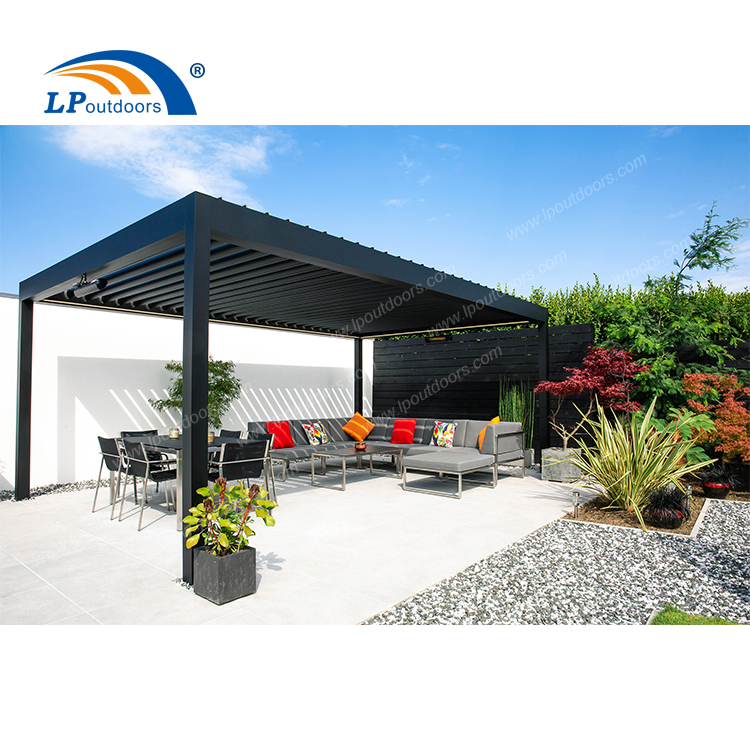

black louvered roof pergola in gardenlouvered roof with side

Specification


Framework Main Beam Extruded from 6063 Solid and Robust Aluminum Construction
Internal Guttering Complete with Gutter and Corner Spout for Downpipe
Louvres Blade Size 202mm Aerofoil Available, Waterproof Effective Design
Blade End Caps Highly Durable Stainless Steel #304, Coated Match Blade Colors
Other Components SS Grade 304 Screws, Bushes, Washers, Aluminum Pivot Pin
Typical Finishes Durable Powder Coated or PVDF Coating for Exterior Application
Colors Options RAL 7016 Anthracite Grey or RAL 9016 Traffic White or Customized Color
Motor Certification IP67 testing report, TUV, CE, SGS
Motor Certification of Side Screen UL




FAQ

Q: How to set up the pergola?

       A:
We will provide the installation video ,footplate layout, and illustration

Let you understand how to set up the pergola, Also our engineer can fly to your city to help set up the tent structure.


Q:  What' s your shipment terms?
      A: Generally, if samples, by air or by express(DHL,UPS,FEDEX,TNT,EMS)If bigger order, by sea.


Q: How can I go to visit your company?

A: Our factory is located in Dongguan City, Guangzhou, China. You can get in touch with us to make an appointment to visit our company. Then we will arrange the pickup and other accomodation services.


Q: Is that factory direct-sale price?


A: Yes, it is factory direct-sale, It is our own factory


Q : What' s your main port of lading?

       A: Guangzhou/Shenzhen


Q: Could you put our logo on the packing?
      A: Yes, it is easy to print your logo on the packing.
