Big hip ends aluminum mixed marquee tent for gathering

Color:
Material:
Availability:
Quantity:
  • MST30

  • LP OUTDOORS

  • 6306220090


Big hip ends aluminum mixed marquee tent for gathering


  Big hip ends aluminum mixed marquee tent for gathering can be used alone or mixed with other types of tents, which looks like a big house, providing us with a comfortable and superior outdoor temporary fabric building.



  Suitable for high-end gorgeous outdoor activities with eye-catching combination shape, flexible aluminum frame can be combined with other types of tents as your ideas, indoor space utilization rate of hip ends mixed marquee tent for gathering can reach 100%. Easy to load and unload, small storage and transportation volume. High qulity solid aluminum frame structure make the tent can easily deal with all kinds of weather, sand, rain and snow, widely used in outdoor large private parties, wedding parties, product promotion, high-end large conferences, etc.



  Luxurious glass doors and windows, floor systems, ceiling curtains, etc., can be installed to make the tent look more beautiful.





>>Specification

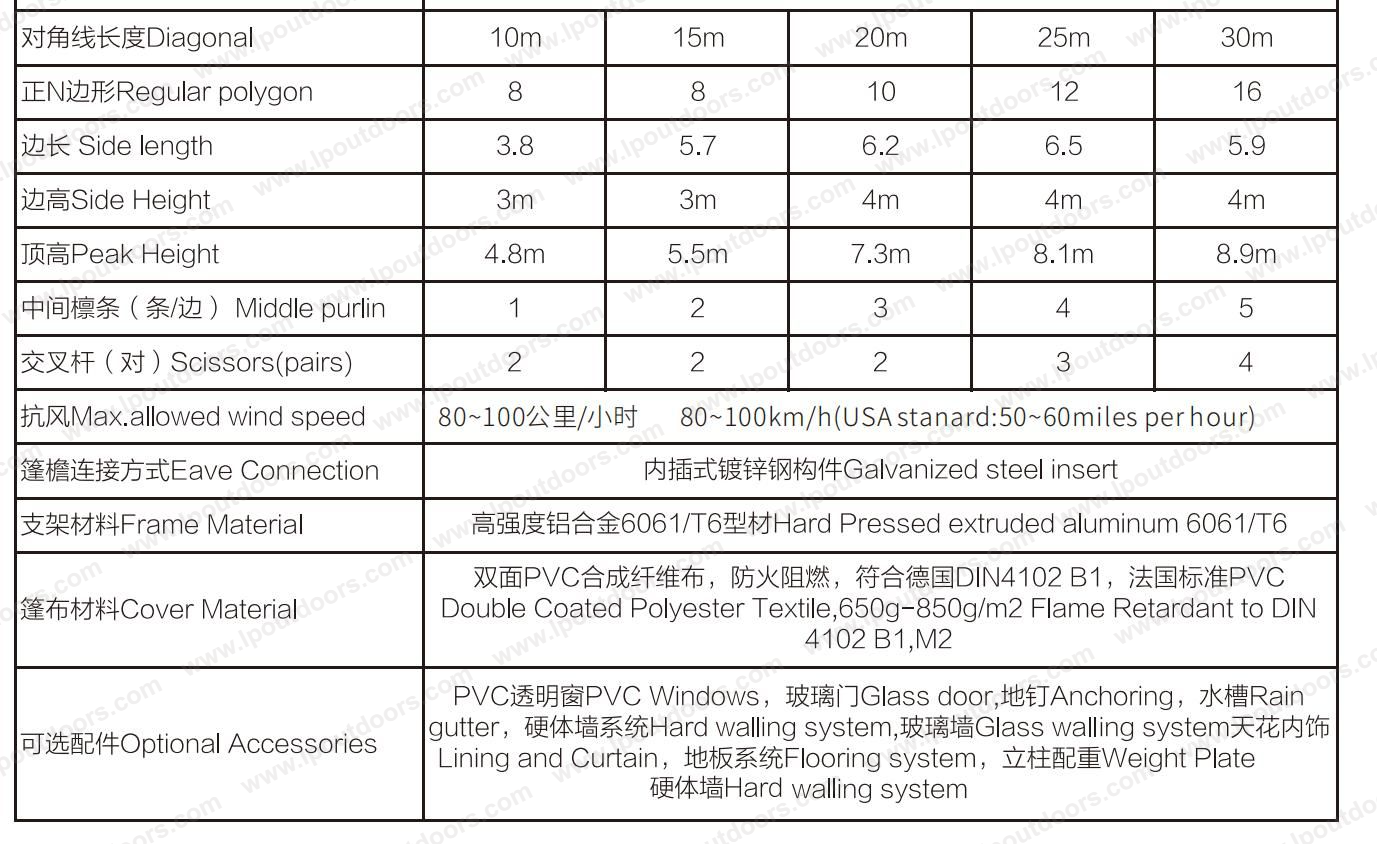

Item Spec
diagoal 10 15 20 25 30
regual polygon 8 8 10 12 16
side length 3.8 5.7 6.2 6.5 5.9
side height 3 3 4 4 4
peak height 4.8 5.5 7.3 8.1 8.9
middle purlin 1
2 3 4 5
scissors(pairs) 2 2 2 3 4
max allowed wind speed 80km/h
frame materoal hard pressed extruded aluminum 6061/T6
eave connnection galvanized steeel inserted
cover material 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2
optional accessories Grass anchors lining, light, wood flooring, slide glass door and so on.

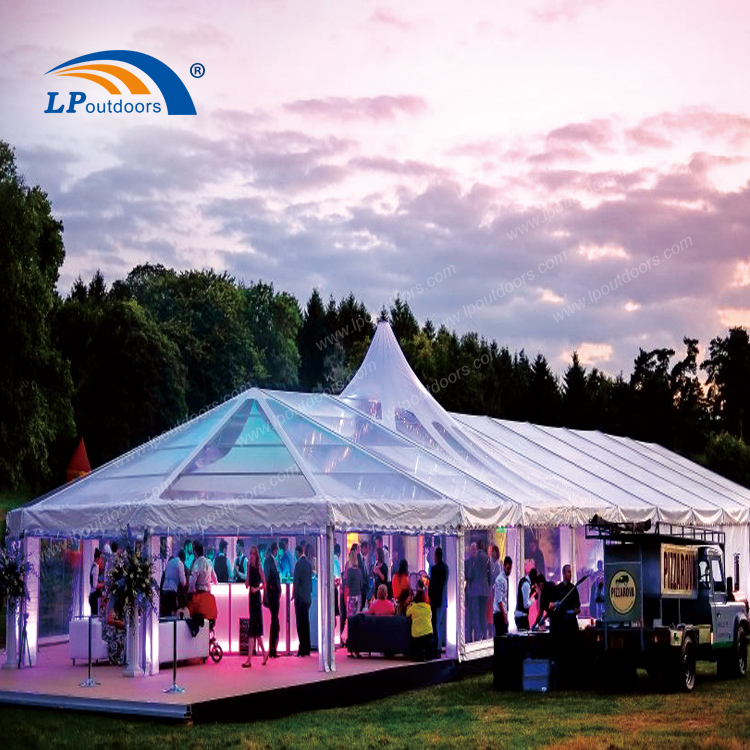

lxury mixed tent

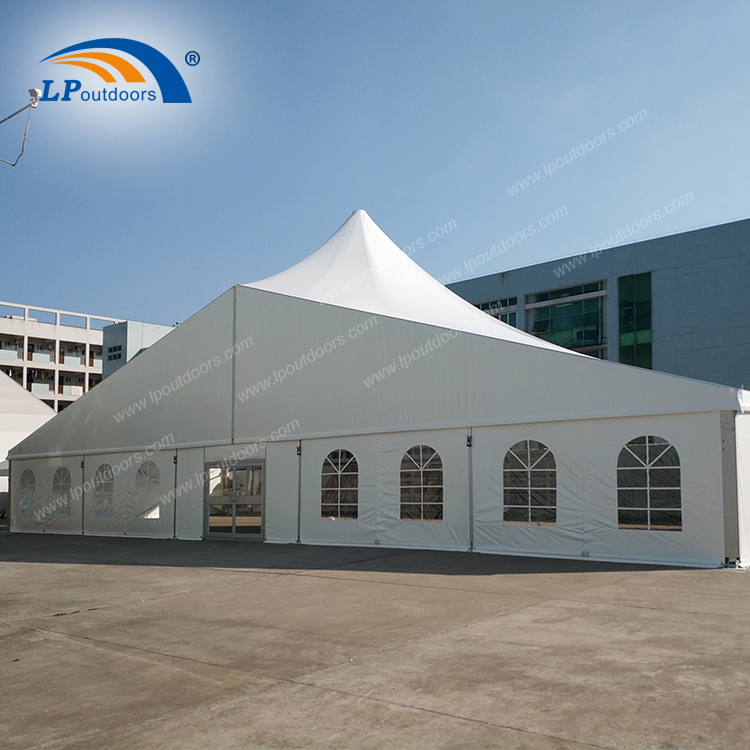

mixed tent in factory

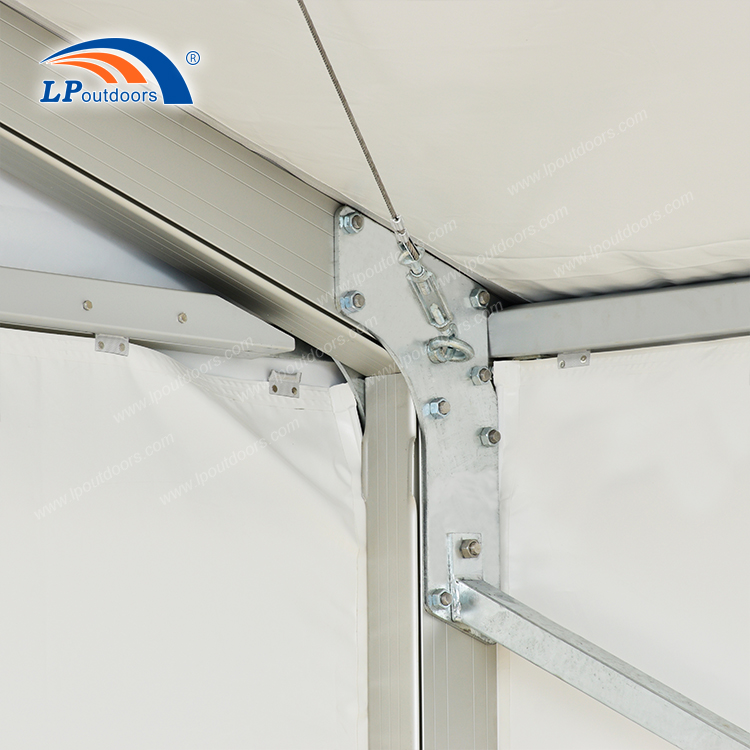

15M marquee tent with transparent window (4)


>>Product Advantage

Item

Our manufactory

Some manufactories

Side height

3m

lower 2.7m or 2.5m

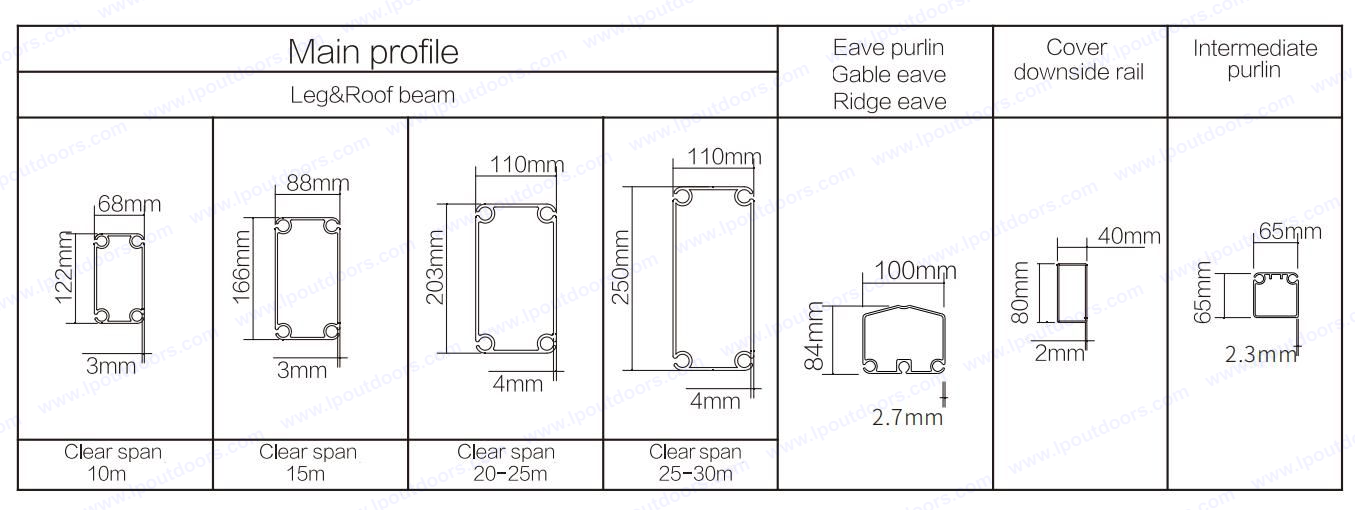

Aluminum profile

Bigger 166x88x3mm

Smaller 122x68x2.5mm profile

Fabric material

850g/sqm, special treated

750g/sqm or 650g/sqm, no special treated

Steel joints

Good welding,

Spray salt resistant 144 hour

Bad welding,

Spray salt resistant about 80 hour

Assembly accuracy

Bolt and holes can fit exactly and fixed

Bolt is difficult to get through hole and fixed.

Transparency PVC

UV Aging test, -20º C resistant

No UV Aging test, can' t be 20º C resistant

Sidewallaccessories

Nylon rope+Nickel Eyelet

Zippper, easy broken or cotton rope, easy rot

Rachet

Bigger rachet+nylon 50mm ribbon

Small rachet+polyester ribbon, easy breaken

Cover lappetstructure

Aluminum rails+screw bolt

Elastic rope, easy breaken and water can' t flow.

Roof wire

201# steel wire, stainlesss

Generally steel wire, easy stain

Support beam

  " X" brace beam, galvanized steel

port beam, thin aluminum

Gable triangle wall

The middle is aluminum slots

The middle is velcro or rope.

Wind loading

Wind loading 80km/h test report

No Wind loading test report


If you need more specification or other details, please kindly click on the website:

https://www.lpoutdoors.com/specification.html
