50m white aluminum curve marquee tent
for electronic music concert

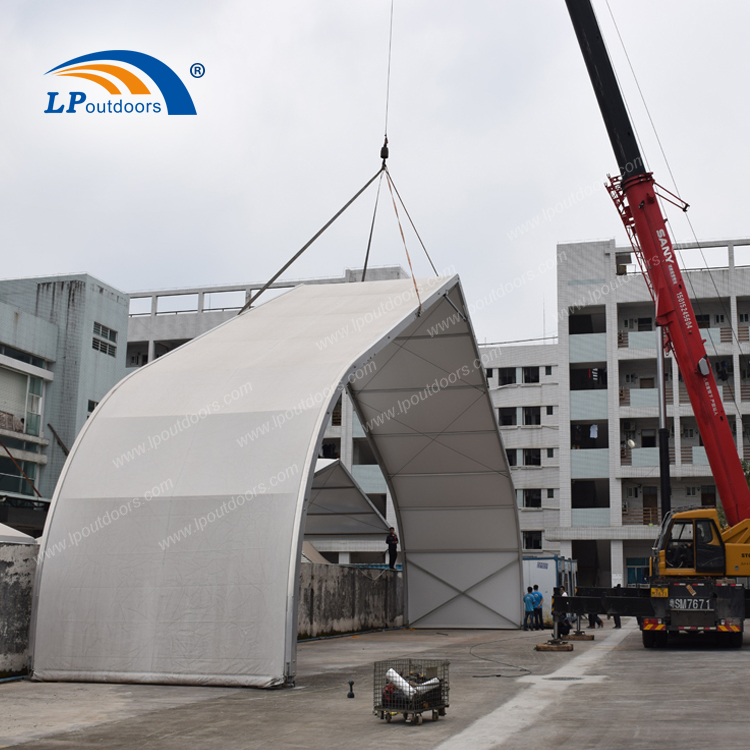

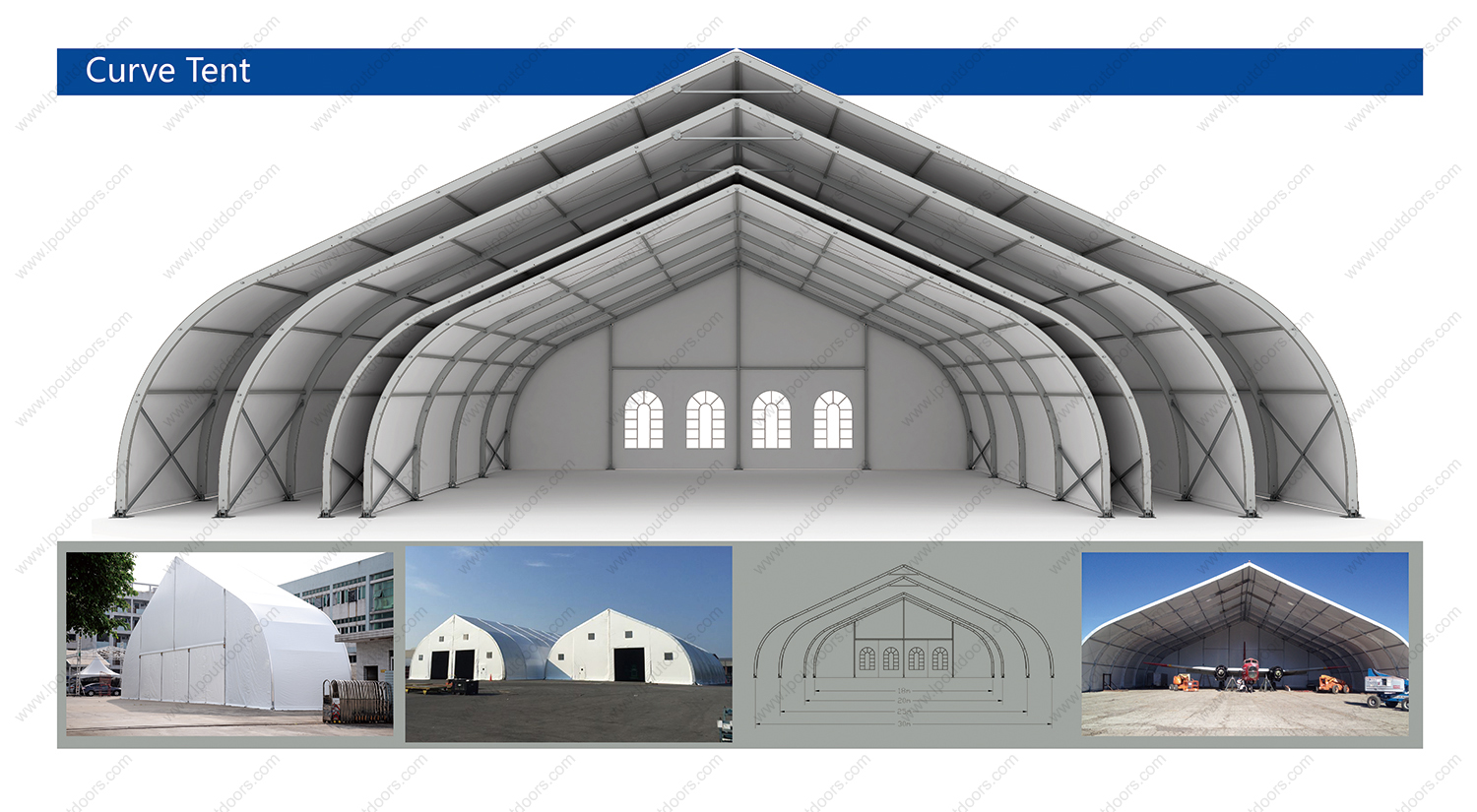

The aluminum curve marquee tent is a tent built with curved columns.
The unique peach-shaped aluminum frame structure also distinguishes it from other types of tents. The 50m white aluminum curve marquee tent for electronic music concert has a larger air space than the traditional tent. It is not easy to collapse, which can resist strong winds of more than class 8. If it is equipped with weight plates and guy ropes, the wind resistance level can be higher. Besides, the unique curve frame structure won't allow the snow stay for too long, it is very suitable for use in areas with severe weather.
The white aluminum curve marquee tent is very suitable for concerts, corroborees, electronic concerts and other performance activities. The interior space is large enough to set up the equipment needed for the performance and accommodate many people. High quality materials also ensure the safety of personnel and equipment, people can enjoy the pleasure of music in the tent.

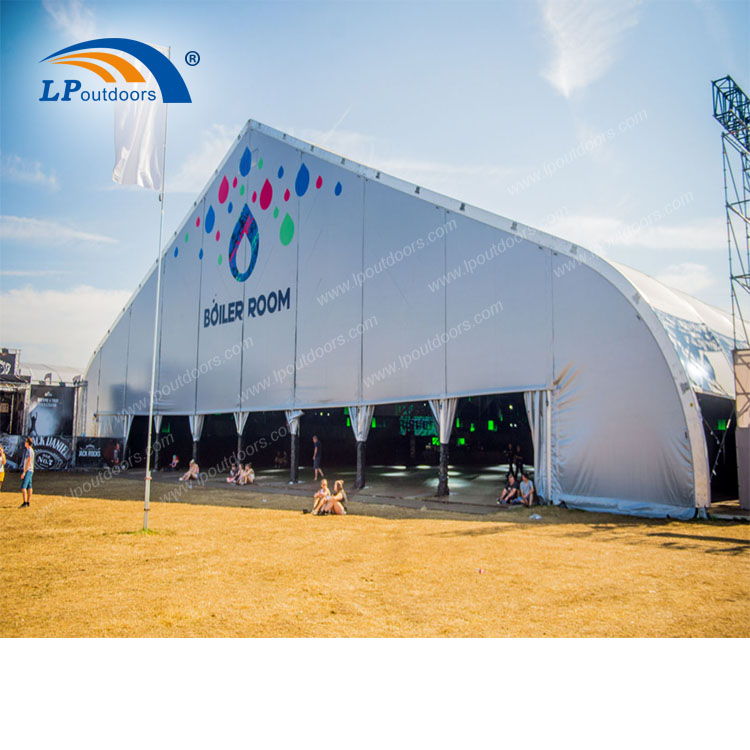

LPOutdoors, as a specialist tent manufacturer, has provided tents for many shows, such as Boiler Room, and has received good feedback.
>>Specification
Item | Spec | ||
clear span | 20m | 25m | 30m |
side height | 4m | ||
ridge height | 9.2m | 10.3m | 11.5m |
bay distance | 5m | ||
longest component | 8.35m | 9.57m | 9.7m |
maximum length | no limited | ||
max allowed wind speed | 80km/h | ||
frame materoal | hard pressed extruded aluminum 6061/T6 | ||
eave connnection | galvanized steeel inserted | ||
cover material | double coated polyster texile, 650g-850g/㎡ flame retardant to DIN 4102 B1,M2 | ||
optional accessories | PVC windows, glass door, ABS wall and so on. |
>>Product Advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
50m white aluminum curve marquee tent
for electronic music concert
The aluminum curve marquee tent is a tent built with curved columns.
The unique peach-shaped aluminum frame structure also distinguishes it from other types of tents. The 50m white aluminum curve marquee tent for electronic music concert has a larger air space than the traditional tent. It is not easy to collapse, which can resist strong winds of more than class 8. If it is equipped with weight plates and guy ropes, the wind resistance level can be higher. Besides, the unique curve frame structure won't allow the snow stay for too long, it is very suitable for use in areas with severe weather.
The white aluminum curve marquee tent is very suitable for concerts, corroborees, electronic concerts and other performance activities. The interior space is large enough to set up the equipment needed for the performance and accommodate many people. High quality materials also ensure the safety of personnel and equipment, people can enjoy the pleasure of music in the tent.
LPOutdoors, as a specialist tent manufacturer, has provided tents for many shows, such as Boiler Room, and has received good feedback.
>>Specification
Item | Spec | ||
clear span | 20m | 25m | 30m |
side height | 4m | ||
ridge height | 9.2m | 10.3m | 11.5m |
bay distance | 5m | ||
longest component | 8.35m | 9.57m | 9.7m |
maximum length | no limited | ||
max allowed wind speed | 80km/h | ||
frame materoal | hard pressed extruded aluminum 6061/T6 | ||
eave connnection | galvanized steeel inserted | ||
cover material | double coated polyster texile, 650g-850g/㎡ flame retardant to DIN 4102 B1,M2 | ||
optional accessories | PVC windows, glass door, ABS wall and so on. |
>>Product Advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
