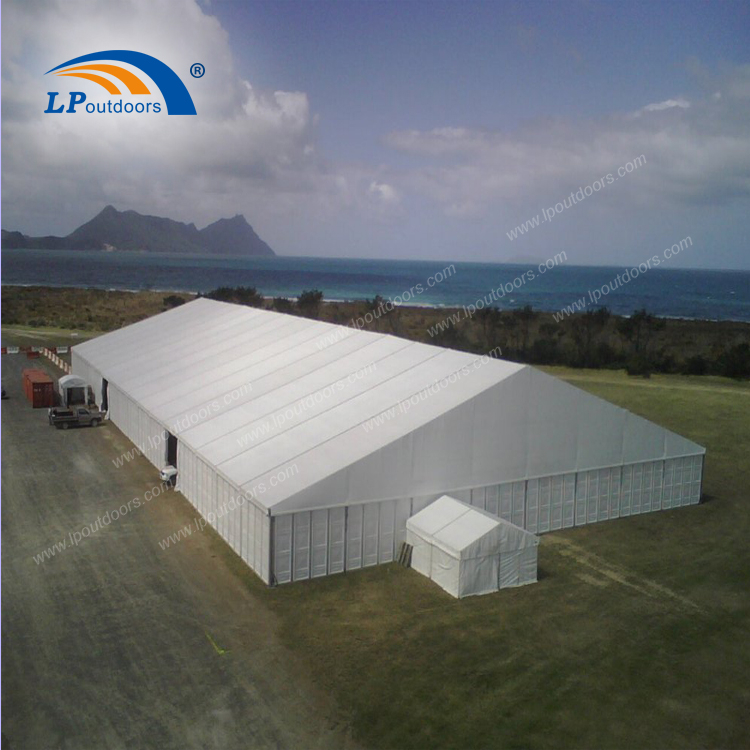

40m outdoor temporary fabric storage shelter with ABS walls

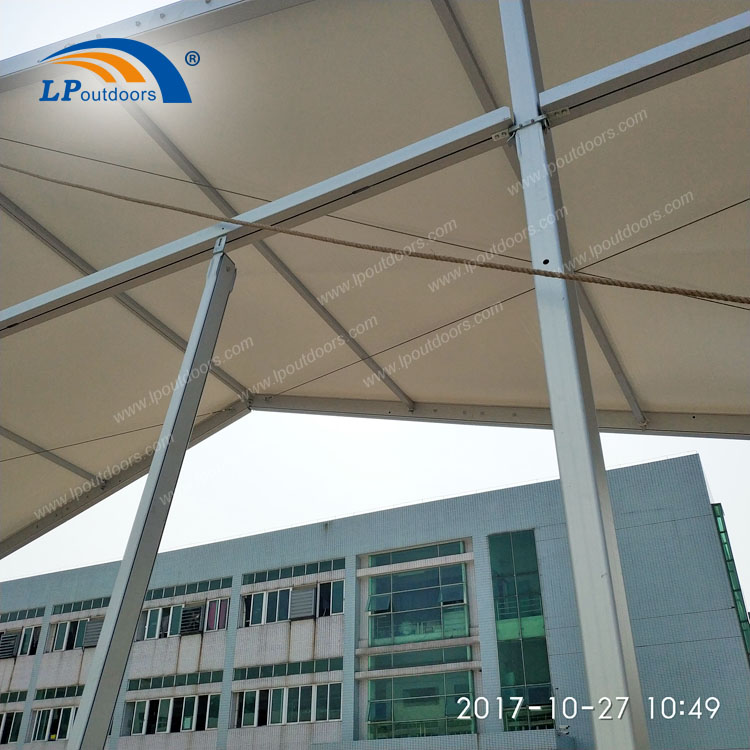

The fabric used for the storage shelter is light and durable, which can withstand bad weather conditions. The high quality aluminum structure supports are stable and safe, convenient to disassemble and carry, and flexible to build.
In addition to the economic cost, time is also one of the important costs for enterprises. Compared with the traditional warehouse with fixed building, the temporary fabric storage shelter can be moved or removed with its modular design of high quality aluminum frame according to the needs of enterprises, which will not cause damage to the site and is more environmentally friendly. And ABS walls will make the structure stronger to provide much safer place for peole and goods under the storage shelter.
40m outdoor temporary fabric storage shelter with ABS walls with its unique advantages have won the favor of most enterprises and received nice feedback.
>>Specification
| Item | Spec | |||
| clear span | 25m | 30m | 35m | 40m |
| side height | 4m | 4m | 4m | 4m |
| ridge height | 8.9m | 9.7m | 10.5m | 12.1m |
| bay distance | 5m | |||
| longest component | 6.8m | 8.1m | 9.4m | 10.7m |
| minimun length | 30m | |||
| maximum length | no limited | |||
| max allowed wind speed | 80km/h | |||
| frame materoal | hard pressed extruded aluminum 6061/T6 | |||
| eave connnection | galvanized steeel inserted | |||
| cover material | double coated polyster texile, 650g-850g/㎡ flame retardant to DIN 4102 B1,M2 | |||
| optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. | |||
>>Product Advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
