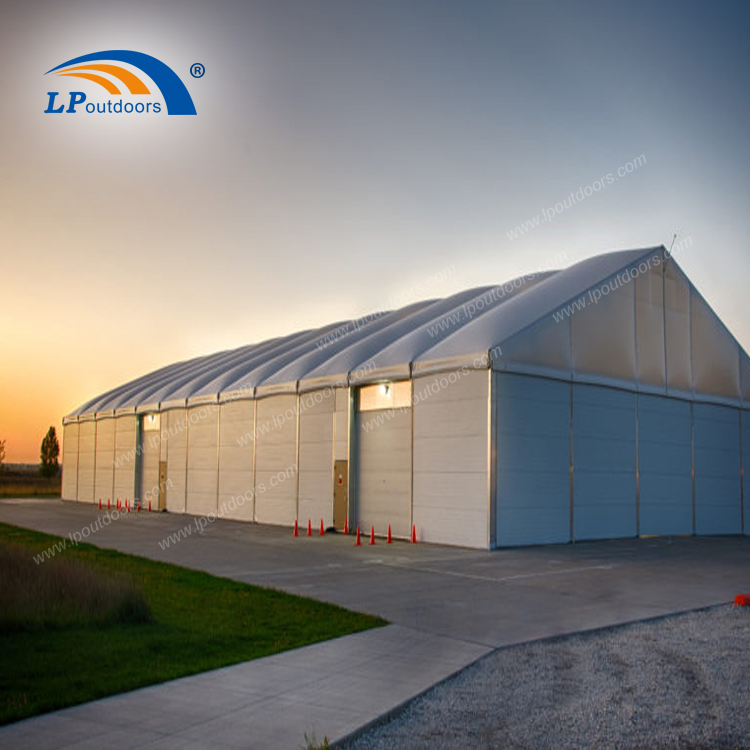

25m industrial movable fabric building for storage
with sandwich walls
With the continuous progress and development of the society, the usage of temporary warehouse building is becoming wider and wider.
The emergence of moveable warehouse tent is an innovative breakthrough in the industry.
25m industrial movable fabric building for storage with sandwich walls has the characteristics of fast construction, low construction and low operation cost, which is incomparable to other buildings.
The modular design of aluminum frame structure shortens warehouse construction time and can be moved quickly, reduces lots of costs for enterprises, and is environmentally friendly with less damage to the environment.
Also, high quality building materials ensure the safety of goods and staff, sandwish walls can keep temperature of inside air. Industrial fabric building for storage have become a good and popular choice for businesses to store their goods.
>>Specification
Item | Spec | |||
clear span | 15m | 18m | 20m | 25m |
side height | 3m | 4m | 4m | 4m |
ridge height | 5.5m | 5.9m | 7.3m | 8.1m |
roof pitch | 18° | 18° | 18° | 18° |
bay distance | 5m | |||
longest component | 4.73m | 4.85m | 5.8m | 6.8m |
maximum length | no limited | |||
max allowed wind speed | 80km/h | |||
frame materoal | hard pressed extruded aluminum 6061/T6 | |||
eave connnection | galvanized steeel inserted | |||
cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | |||
optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. |
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
25m industrial movable fabric building for storage
with sandwich walls
With the continuous progress and development of the society, the usage of temporary warehouse building is becoming wider and wider.
The emergence of moveable warehouse tent is an innovative breakthrough in the industry.
25m industrial movable fabric building for storage with sandwich walls has the characteristics of fast construction, low construction and low operation cost, which is incomparable to other buildings.
The modular design of aluminum frame structure shortens warehouse construction time and can be moved quickly, reduces lots of costs for enterprises, and is environmentally friendly with less damage to the environment.
Also, high quality building materials ensure the safety of goods and staff, sandwish walls can keep temperature of inside air. Industrial fabric building for storage have become a good and popular choice for businesses to store their goods.
>>Specification
Item | Spec | |||
clear span | 15m | 18m | 20m | 25m |
side height | 3m | 4m | 4m | 4m |
ridge height | 5.5m | 5.9m | 7.3m | 8.1m |
roof pitch | 18° | 18° | 18° | 18° |
bay distance | 5m | |||
longest component | 4.73m | 4.85m | 5.8m | 6.8m |
maximum length | no limited | |||
max allowed wind speed | 80km/h | |||
frame materoal | hard pressed extruded aluminum 6061/T6 | |||
eave connnection | galvanized steeel inserted | |||
cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | |||
optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. |
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
