YOUR TRUST TENT STRUCTURE SOLUTION PARTNER SINCE 2005
Mobile/WhatsApp/Wechat:
0086-159-8964-5266
0086-186-6644-0599
Size: | |
---|---|
Color: | |
Clear Span: | |
Material: | |
Availability: | |
Quantity: | |
CPT25
LP OUTDOORS
6306220090
25

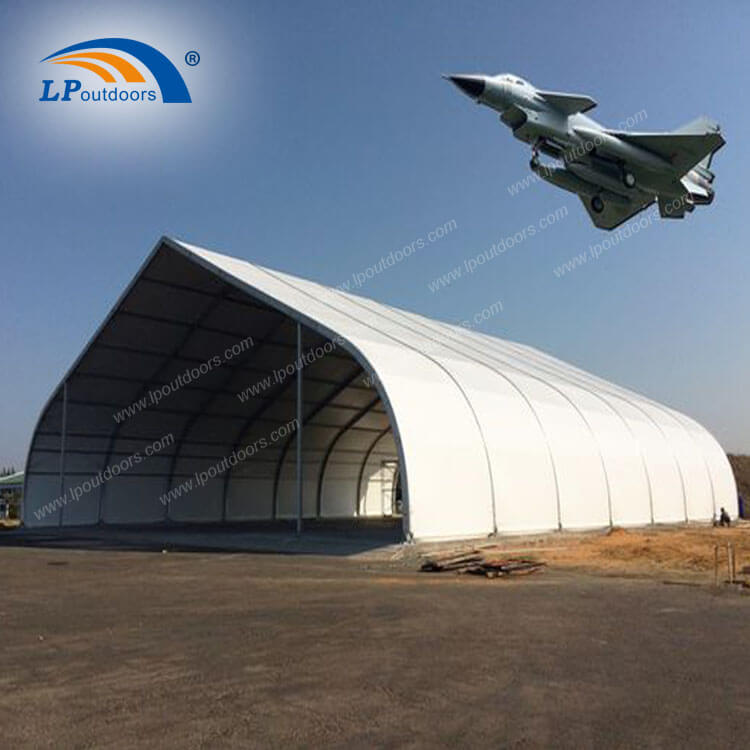

25m span aluminum frame structure building curve aircraft tent

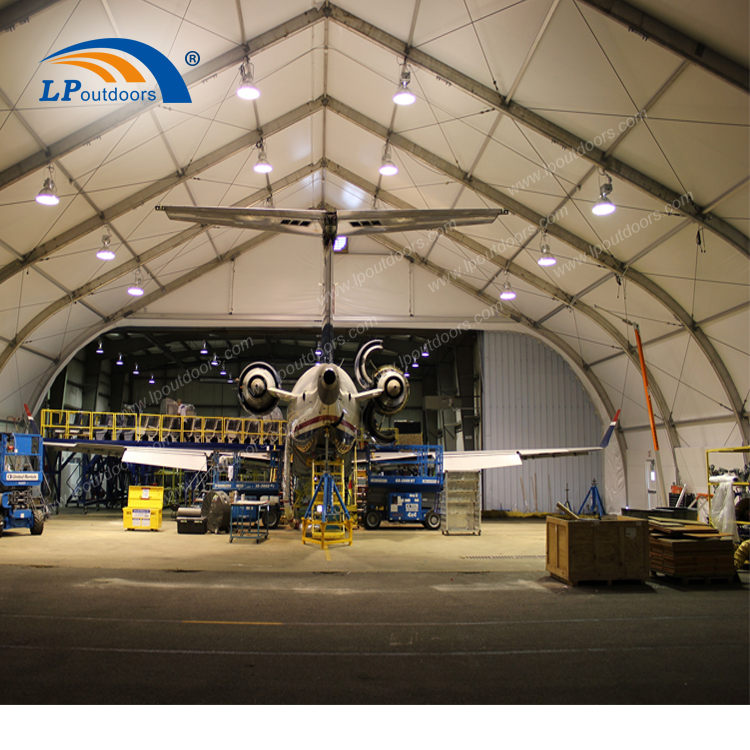

Aircraft tent is a building for the preservation, maintenance and repair of aircraft. Whether for long-term or temporary use, aircraft tent can quickly adapt to any terrain and weather outdoors.
Inside of the 25m clear span aluminum frame structure building curve aircraft tent, there is no inner poles. The unique peach-shaped structure can provide more space for the aircraft to enter and leave freely without obstruction.
Compared with the traditional reinforced concrete structure, the modular design of aluminum frame struture building can make the tent fast loading and unloading, easy to clean, strong and safe, waterproof and fireproof, can resist more than eight grade strong wind, aircraft tents can meet and ensure the long-term safe use of outdoor needs
>>Photos
>>Product Advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
25m span aluminum frame structure building curve aircraft tent
Aircraft tent is a building for the preservation, maintenance and repair of aircraft. Whether for long-term or temporary use, aircraft tent can quickly adapt to any terrain and weather outdoors.
Inside of the 25m clear span aluminum frame structure building curve aircraft tent, there is no inner poles. The unique peach-shaped structure can provide more space for the aircraft to enter and leave freely without obstruction.
Compared with the traditional reinforced concrete structure, the modular design of aluminum frame struture building can make the tent fast loading and unloading, easy to clean, strong and safe, waterproof and fireproof, can resist more than eight grade strong wind, aircraft tents can meet and ensure the long-term safe use of outdoor needs
>>Photos
>>Product Advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
Specification Of 25-30M Curve Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LPoutdoors' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model
About The Main Profile
About Details Of 25-30 Curve Tent
Item | Spec | ||
Clear Span (With) | 20m | 25m | 30m |
Side Height | 4m | 4m | 4m |
Ridge Height | 9.2m | 10.3m | 11.5m |
Longest Component | 8.35m | 9.57m | 9.7m |
Bay Distance | 5m | ||
Minimum Length | 30m | ||
Maximum Length | No Limited | ||
Max. Allowed Wind Speed | 80KM/H | ||
Eave Connection | Galvanized steel insert | ||
Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | ||
Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to Din4102B1,M2 | ||
Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate |
About The Optional Accessories
About the Practical Using
Specification Of 25-30M Curve Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LPoutdoors' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model
About The Main Profile
About Details Of 25-30 Curve Tent
Item | Spec | ||
Clear Span (With) | 20m | 25m | 30m |
Side Height | 4m | 4m | 4m |
Ridge Height | 9.2m | 10.3m | 11.5m |
Longest Component | 8.35m | 9.57m | 9.7m |
Bay Distance | 5m | ||
Minimum Length | 30m | ||
Maximum Length | No Limited | ||
Max. Allowed Wind Speed | 80KM/H | ||
Eave Connection | Galvanized steel insert | ||
Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | ||
Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to Din4102B1,M2 | ||
Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate |
About The Optional Accessories
About the Practical Using
Let's through the video to view how to install it
The application of the clear curve tent
Let's through the video to view how to install it
The application of the clear curve tent
