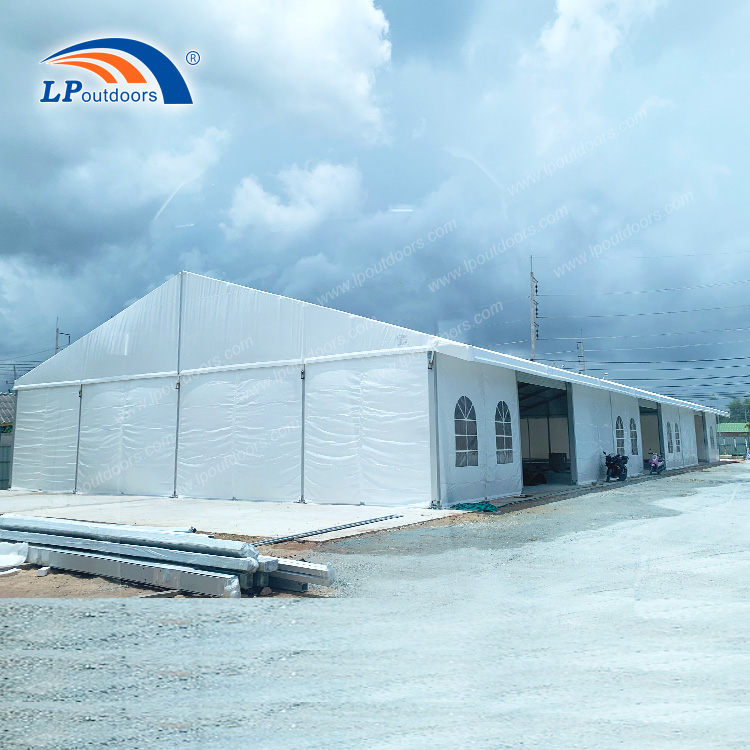

20M white temporary industrial tent as warehouse
with sandwich walls
For enterprises, inventory in the warehouse becomes an important current asset and problem during the sales season. The appearance of temporary industrial tent as warehouse solves this big trouble for enterprises, and it is widely used in the field of industry and storage.
The temporary industrial tent is beautiful, convenient to set up and disassemble, economical and safe to meet your increasing demand for production and storage.
20M white temporary industrial tent as warehouse with sandwich walls has low requirement for ground, can be built on the grass or concrete. Waterproof and fireproof fabric and high quality aluminum structure provide security for the cargo. And sandwich walls can prevent the temperature changing too soon to protect the cargo. In addition, cement foundation can be installed to prevent rainwater on the ground from entering the tent and make the structure more stable.

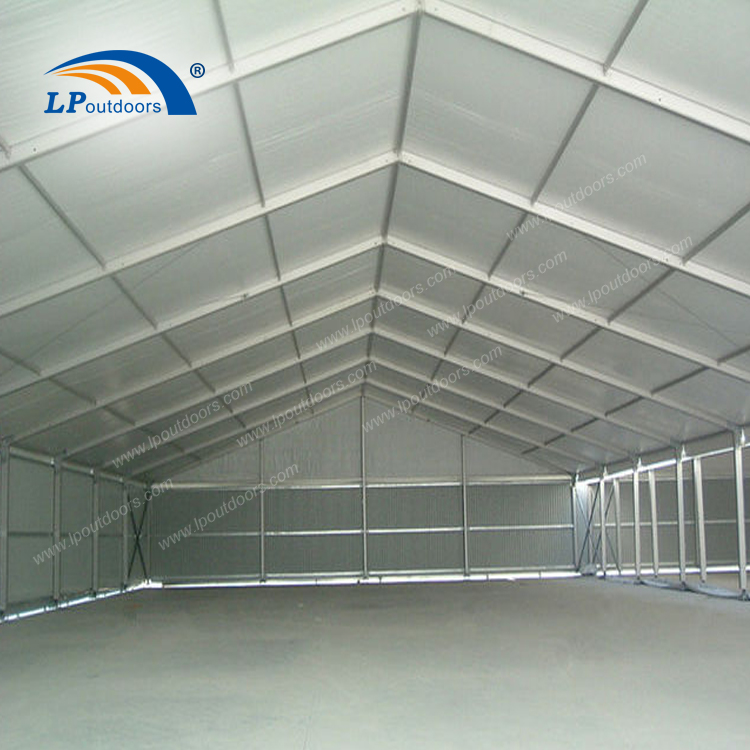

The interior the industrial tent has no post, the space utilization rate can reach really high, forklift truck and other large machines and equipment can enter and leave freely.
>>Specification
Item | Spec | |||
clear span | 15m | 18m | 20m | 25m |
side height | 3m | 4m | 4m | 4m |
ridge height | 5.5m | 5.9m | 7.3m | 8.1m |
roof pitch | 18° | 18° | 18° | 18° |
bay distance | 5m | |||
longest component | 4.73m | 4.85m | 5.8m | 6.8m |
maximum length | no limited | |||
max allowed wind speed | 80km/h | |||
frame materoal | hard pressed extruded aluminum 6061/T6 | |||
eave connnection | galvanized steeel inserted | |||
cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | |||
optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. |
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
