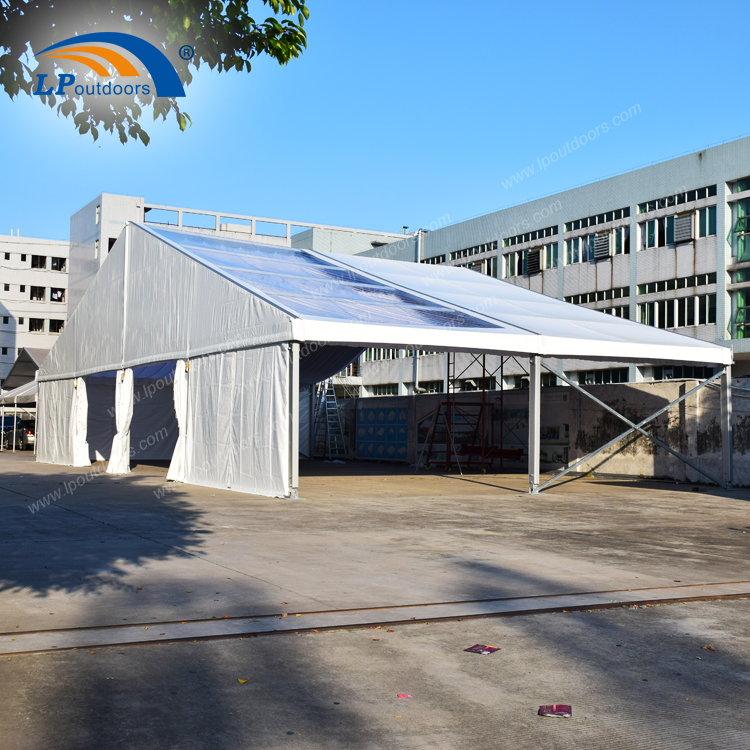

20M white outdoor industrial warehouse tent with rolling door
The time-consuming and labor-consuming traditional concrete buildings are very inconvenient in use, so that most enterprises begin to turn their attention to outdoor industrial warehouse tent with rolling door.
The space in the industrial warehouse tents is not only flexible and practical, but also very economical compared with traditional buildings.
As a carrier of historical or long-term storage, aluminum frame white outdoor warehouse tent has many advantages such as high security, high space utilization rate and easy disassembly transportation.
Besides, 20m white outdoor industrial warehouse tent with rolling door has no special requirements for the foundation, which can be operated on the general grass, cement and so on. Rolling door euiped on the wall will allow the goods enter or leave more convenient, for it is automatic can be remote controled, quick to open and close . If you want the warehouse tents to work for a long term, then the cement foundation is needed to prevent ground rain from entering the tent and to make the structure stronger. And it does not need to be approved for construction.
>>Specification
Item | Spec | |||
clear span | 15m | 18m | 20m | 25m |
side height | 3m | 4m | 4m | 4m |
ridge height | 5.5m | 5.9m | 7.3m | 8.1m |
roof pitch | 18° | 18° | 18° | 18° |
bay distance | 5m | |||
longest component | 4.73m | 4.85m | 5.8m | 6.8m |
maximum length | no limited | |||
max allowed wind speed | 80km/h | |||
frame materoal | hard pressed extruded aluminum 6061/T6 | |||
eave connnection | galvanized steeel inserted | |||
cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | |||
optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. |
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
20M white outdoor industrial warehouse tent with rolling door
The time-consuming and labor-consuming traditional concrete buildings are very inconvenient in use, so that most enterprises begin to turn their attention to outdoor industrial warehouse tent with rolling door.
The space in the industrial warehouse tents is not only flexible and practical, but also very economical compared with traditional buildings.
As a carrier of historical or long-term storage, aluminum frame white outdoor warehouse tent has many advantages such as high security, high space utilization rate and easy disassembly transportation.
Besides, 20m white outdoor industrial warehouse tent with rolling door has no special requirements for the foundation, which can be operated on the general grass, cement and so on. Rolling door euiped on the wall will allow the goods enter or leave more convenient, for it is automatic can be remote controled, quick to open and close . If you want the warehouse tents to work for a long term, then the cement foundation is needed to prevent ground rain from entering the tent and to make the structure stronger. And it does not need to be approved for construction.
>>Specification
Item | Spec | |||
clear span | 15m | 18m | 20m | 25m |
side height | 3m | 4m | 4m | 4m |
ridge height | 5.5m | 5.9m | 7.3m | 8.1m |
roof pitch | 18° | 18° | 18° | 18° |
bay distance | 5m | |||
longest component | 4.73m | 4.85m | 5.8m | 6.8m |
maximum length | no limited | |||
max allowed wind speed | 80km/h | |||
frame materoal | hard pressed extruded aluminum 6061/T6 | |||
eave connnection | galvanized steeel inserted | |||
cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | |||
optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. |
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
If you need more specification or other details, please kindly click on the website:
https://www.lpoutdoors.com/specification.html
