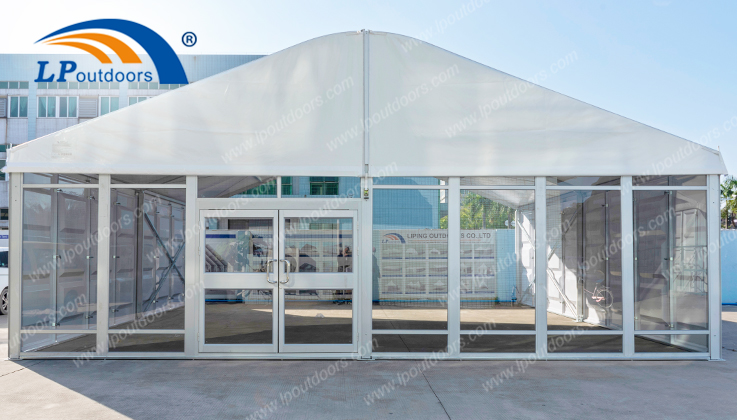

10m white small waterproof arcum marquee tent with ABS walls
When you have a small amount of land or land use is limited, a white small marquee tent is a good choice.
The small waterproof arcum marquee tent with ABS walls is the hot-selling style of small marquee tents, welcomed by customers from all over the world. The luminum frame structure of 10m white small waterproof arcum marquee tent with ABS walls looks like a beat note, fashionable shape can always attract the eyes of passers-by.
The sturdy aluinum structure not only protects the things in the maruqee tent from adverse weather conditions, ensuring your activities are carried out on schedule, but also provides safe and comfortable space for people to move around. What's more, if you still concern about the safety, you can chooose some accessories to reinforce the structure, like guy rope, weight plate and so on.

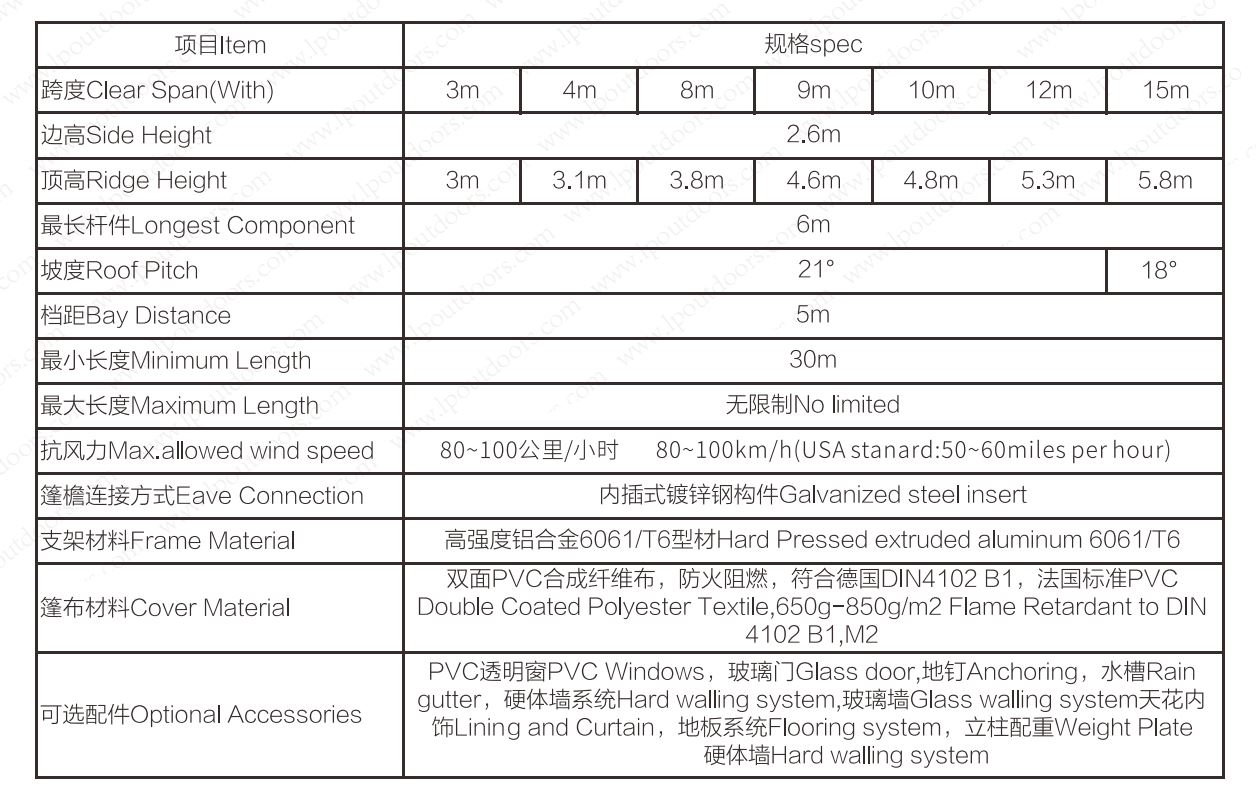

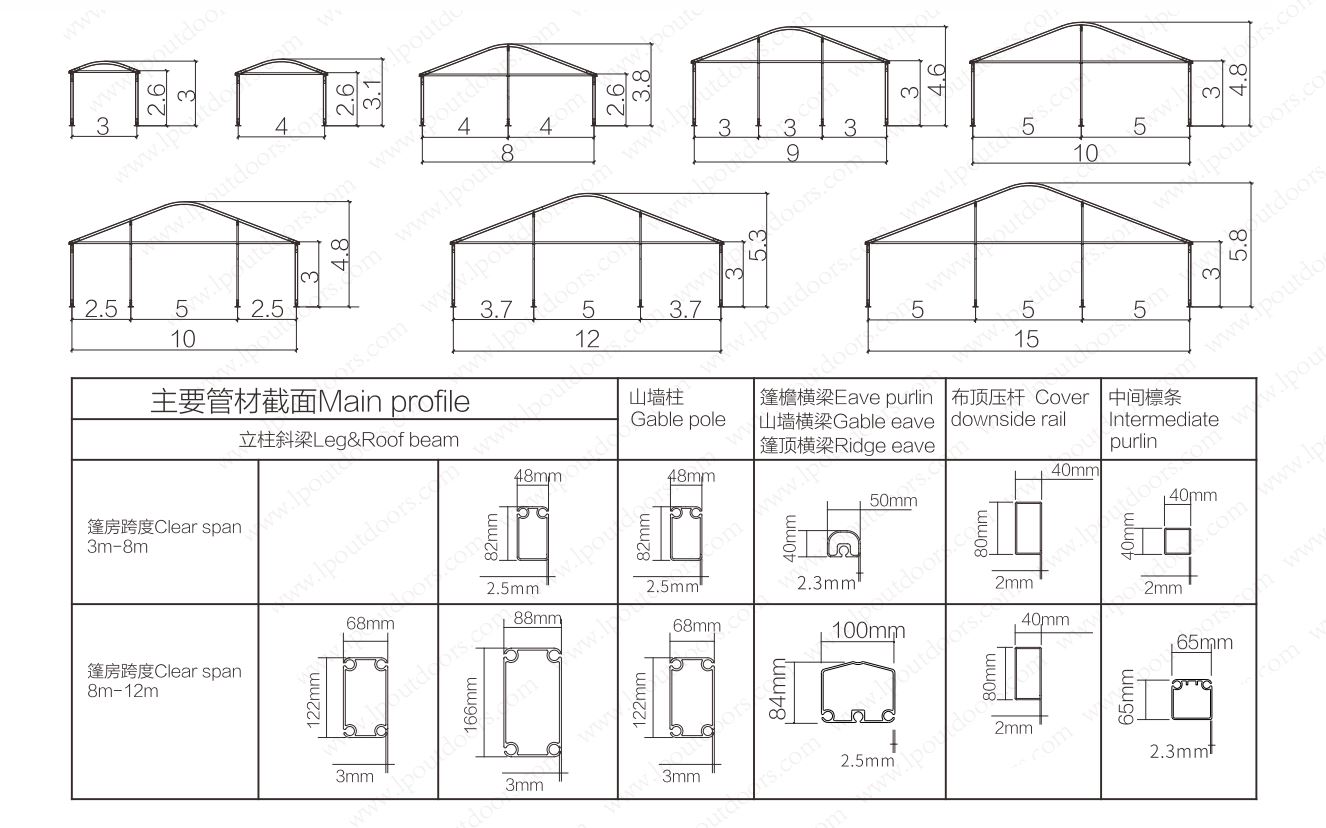

>>Specification
| Item | Spec | ||||||
| clear span | 3 | 4 | 8 | 9 | 10 | 12 | 15 |
| side length | 2.6 | ||||||
| ridge height | 3 | 3.1 | 3.8 | 4.6 | 4.8 | 5.3 | 5.8 |
| longest component | 6 | ||||||
| bay distance | 5 | ||||||
| roof pitch | 21° | 18° | |||||
| mininum length | 30 | ||||||
maximum length | no limited | ||||||
| max allowed wind speed | 80km/h | ||||||
| frame materoal | hard pressed extruded aluminum 6061/T6 | ||||||
| eave connnection | galvanized steeel inserted | ||||||
| cover material | 850g/sqm(24 Ounce) laminate Vinyl PVC, waterproof , fire retardant M2 | ||||||
| optional accessories | Grass anchors lining, light, wood flooring, slide glass door and so on. | ||||||
>>Product Advantage
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric material | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144 hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
Transparency PVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º C resistant |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy broken or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
