10m Clear Span Aluminum Frame Marquee Clear Tent
for Outdoors Wedding Party Banquet
The characteristics of the outdoor wedding tent that is not restricted by the original decoration or style of the venue.
It can be easily built in the courtyard at home or outdoor empty space.Customized clear span fashion aluminum wedding tent for event that can match with different accessories,such as flowers,floor,light,ceiling and transparent window.
In addition, the aluminum frame marquee tent for event has no extra poles in the middle, which expands the available space for the wedding as much as possible, creating a comfortable environment and kindly resturant service for the arriving guests.
What advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
TransparencyPVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º Cresistant, breaken |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy breaken. or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
10m Clear Span Aluminum Frame Marquee Clear Tent
for Outdoors Wedding Party Banquet
The characteristics of the outdoor wedding tent that is not restricted by the original decoration or style of the venue.
It can be easily built in the courtyard at home or outdoor empty space.Customized clear span fashion aluminum wedding tent for event that can match with different accessories,such as flowers,floor,light,ceiling and transparent window.
In addition, the aluminum frame marquee tent for event has no extra poles in the middle, which expands the available space for the wedding as much as possible, creating a comfortable environment and kindly resturant service for the arriving guests.
What advantage:
Item | Our manufactory | Some manufactories |
Side height | 3m | lower 2.7m or 2.5m |
Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
Fabric | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
Steel joints | Good welding, Spray salt resistant 144hour | Bad welding, Spray salt resistant about 80 hour |
Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
TransparencyPVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º Cresistant, breaken |
Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy breaken. or cotton rope, easy rot |
Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
Wind loading | Wind loading 80km/h test report | No Wind loading test report |
Specification Of 8-18m Middle Party Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LPoutdoors' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model

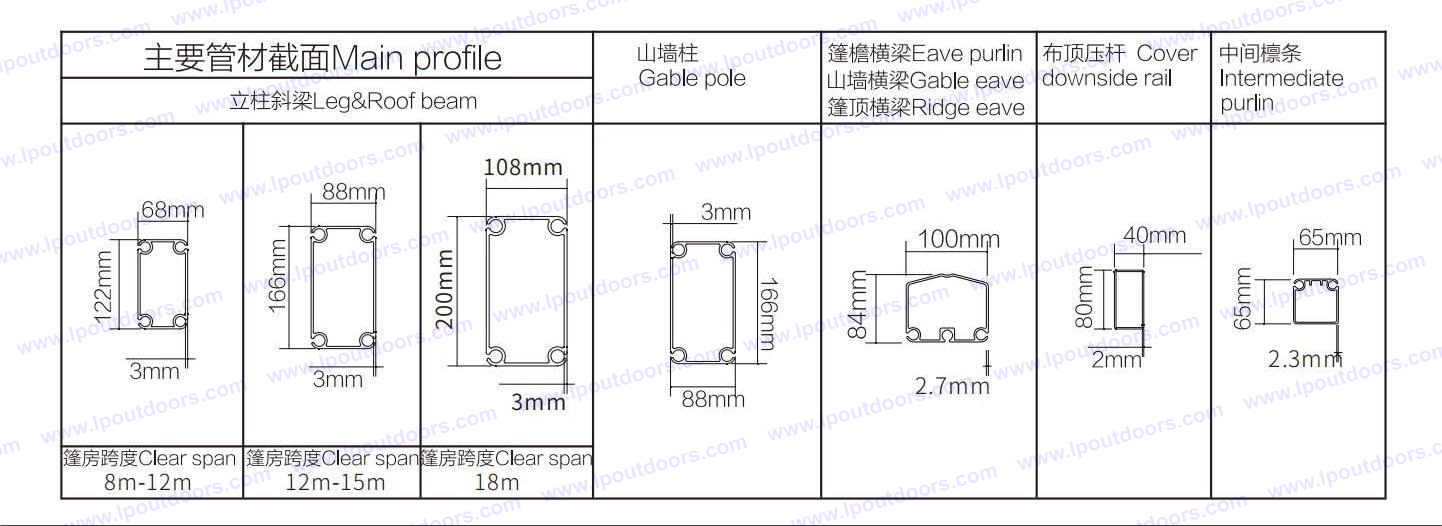

About The Main Profile

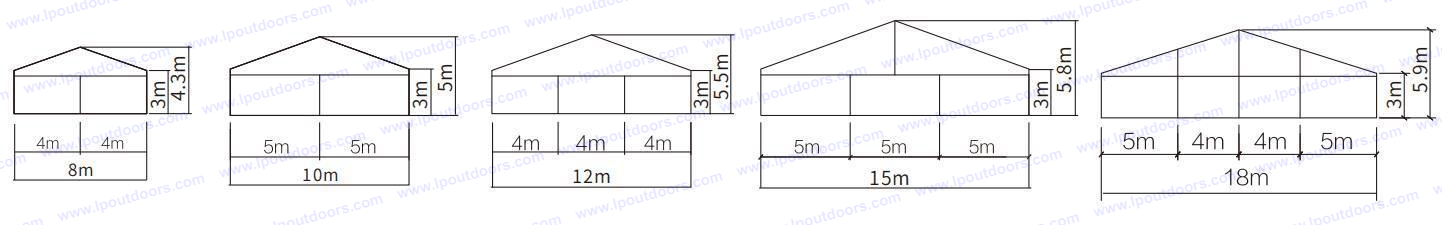

About Details Of 8-18m Middle Party Tent
Item | Spec | |||
Clear Span (With) | 8m | 10m | 12m | 15-18m |
Side Height | 3m | 3m | 3m | 3m |
Ridge Height | 4.3m | 5m | 5.5m | 5.8-5.9m |
Longest Component | 6m | 6m | 6m | 6m |
Roof Pitch | 18° | 18° | 18° | 18° |
Bay Distance | 5m | |||
Minimum Length | 8m | |||
Maximum Length | No Limited | |||
Max. Allowed Wind Speed | 80~100KM/H | |||
Eave Connection | Galvanized steel insert | |||
Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | |||
Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to Din4102B1,M2 | |||
Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate |
About The Optional Accessories
About the Practical Using
Specification Of 8-18m Middle Party Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LPoutdoors' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model
About The Main Profile
About Details Of 8-18m Middle Party Tent
Item | Spec | |||
Clear Span (With) | 8m | 10m | 12m | 15-18m |
Side Height | 3m | 3m | 3m | 3m |
Ridge Height | 4.3m | 5m | 5.5m | 5.8-5.9m |
Longest Component | 6m | 6m | 6m | 6m |
Roof Pitch | 18° | 18° | 18° | 18° |
Bay Distance | 5m | |||
Minimum Length | 8m | |||
Maximum Length | No Limited | |||
Max. Allowed Wind Speed | 80~100KM/H | |||
Eave Connection | Galvanized steel insert | |||
Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | |||
Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to Din4102B1,M2 | |||
Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate |
About The Optional Accessories
About the Practical Using
Let's through the video to know how to install it
Let's through the video to know how to install it
